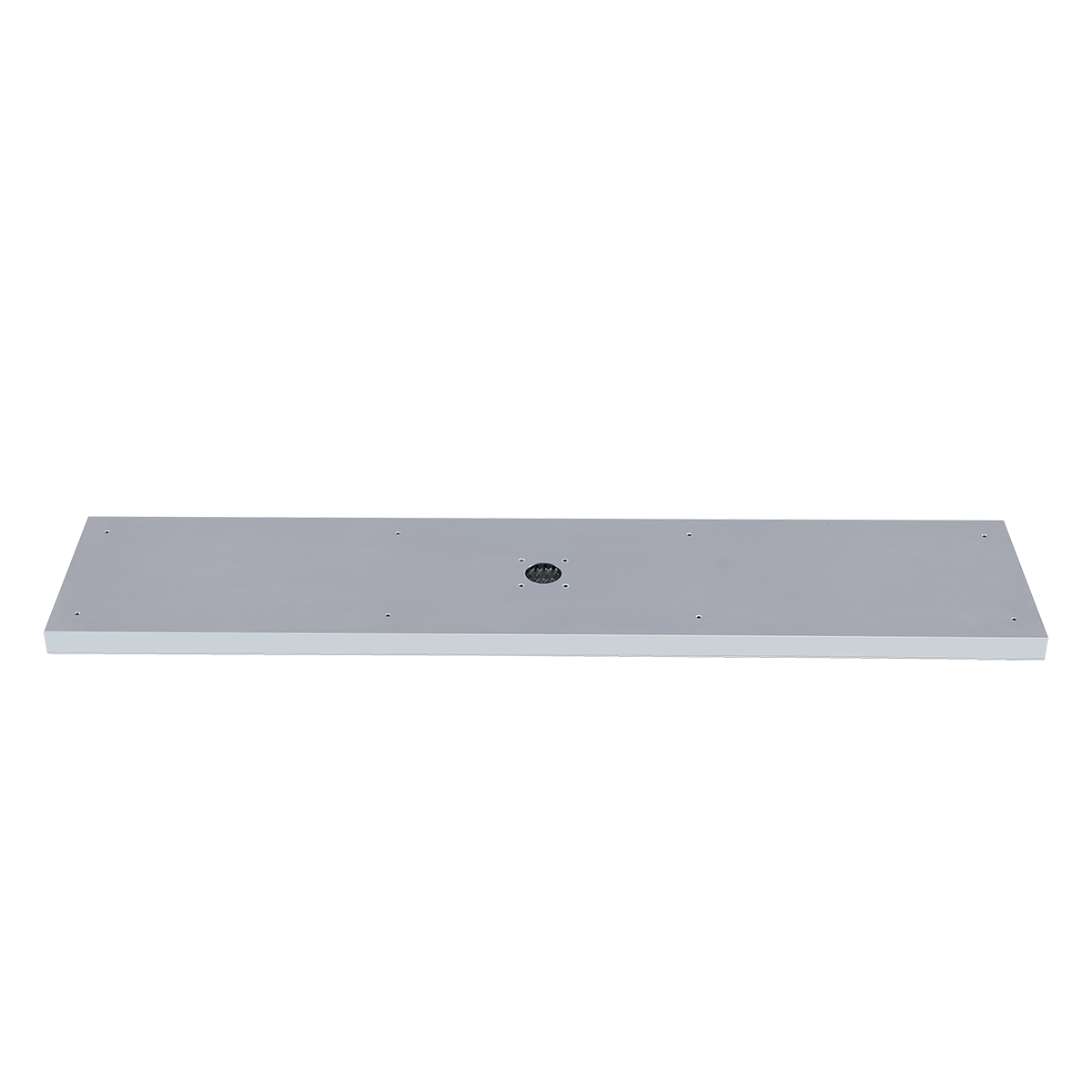

CNC Vacumm Table
key word:
CNC Vacumm Table
Classification:
Product details
1. Two ways:
a. Standalone, suction cup with vacuum pump.
b. One-piece, the suction cup does not need a vacuum pump and only needs to be connected to a positive pressure air source.
2. Accessories: sealing strips, pressure plate sleeves, lifting rings, straight pins, vacuum pumps.

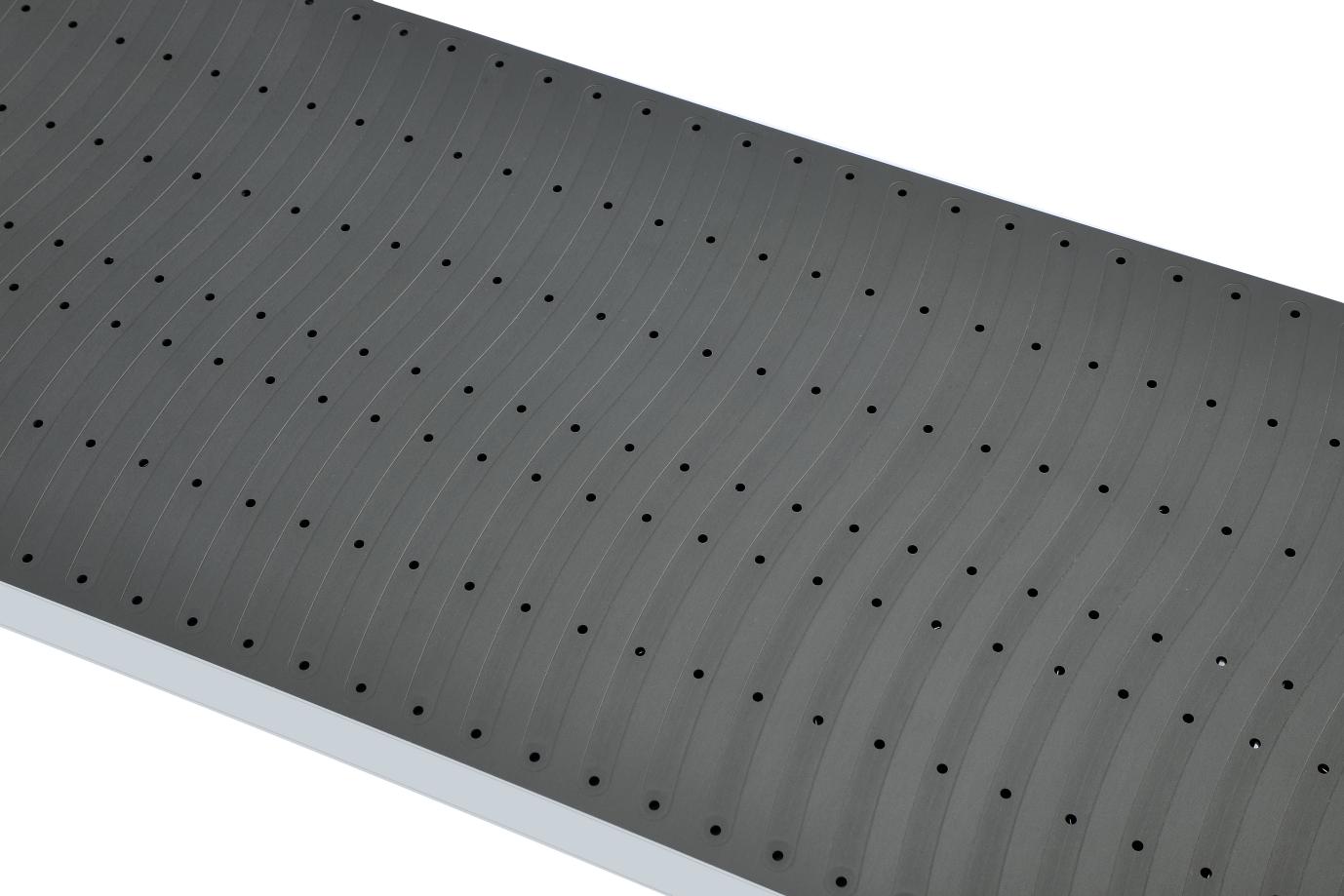

3. The square is 16*16, with blind holes in the square, and the holes can be tapped.
4. Flatness accuracy can reach 0.02mm.
5. The negative pressure gauge shows that it reaches -70KPa, and it can work.
6. The air port is equipped with a slide switch and a C-type self-locking joint.
7. Product material: steel/aluminum alloy (black/blue).
8. Standard supply specifications (other specifications can be customized):
|
S/N |
Dimensions (length, width, height) (mm) |
|
1 |
300x300x55 |
|
2 |
300x400x55 |
|
3 |
300x500x55 |
|
4 |
300x600x55 |
|
5 |
400x400x55 |
|
6 |
400x500x55 |
|
7 |
400x600x55 |
|
8 |
400x800x55 |
|
9 |
400x1000x55 |
|
10 |
500x500x55 |
|
11 |
500x600x55 |
|
12 |
500x800x55 |
|
13 |
500x1000x60 |
|
14 |
600x800x60 |
|
15 |
600x1000x60 |
CNC Vacuum Suction Cup Application Scenarios 700x400
CNC Vacuum Suction Cup Application Scenarios 700x400
CNC Vacuum Suction Cup Application Scenarios 700x400
