PRODUCTS
EXCELSIOR · QUALITY
Aluminum Printer Machine Vacuum Plate Tables Chucks
UV flatbed printer adsorption platform, vacuum chuck,vacuum table,printer machine ,UV vacuum table
CNC Cutting Machine Aluminum Chuck Vacuum Suction Table
CNC Cutting Machine Aluminum Chuck Vacuum Suction Table ,cnc cutting machine,tables cnc vacuum,chuck vacuum, Spec（mm） Thickness（mm） Panelaperture（mm） Panel hole spacing（mm） Panel material Interface method MAX: 25 1 15 Aluminium alloy flange 4000*2100 35.5 1.5 20 stainless steel screw 42.5 2 53.5 Surface Treatment Flatness Panel Thickness Back Thickness Pumping Aperture Partition Hard oxidation ≤0.2mm 2 2 ɸ50 Customizable PVDF 3 ɸ 40 Aluminum primary ɸ 30 Customizable CHARACTERISTICS OF YINMEI VACUUM PLATFORM 【 Silver Beauty Advantage 】 One piece minimum order We can customize the diameter and spacing of adsorption holes, specifications and positions of suction ports, range and differentiation of adsorption areas, size, shape, surface treatment process, processing, etc. according to customer needs. 【 Advantages of Yinmei 】 Customizable in various sizes Yinmei can produce vacuum tables with dimensions of 4000mm * 2100mm (without splicing) 【 Advantages of Yinmei 】 High flatness The Yinmei vacuum table has good flatness and deflection, with flatness generally controlled within 30 threads and a minimum of 10 threads; The deflection value is less than 10 threads under a force of 30 kilograms. 【 Advantages of Yinmei 】 Free customization Customization of sensing windows, punching, riveting and other processing can be freely carried out. The vacuum suction table can be fixed or installed on other equipment according to the customer's situation. 【 Advantages of Yinmei 】 Lightweight&High Strength The interior of the Yinmei vacuum table adopts an aluminum honeycomb structure, which is lightweight and has strong load-bearing capacity. All aluminum alloy materials are used, with a density of about 25-35 kilograms per square meter and a load-bearing capacity of 30 kilograms without deformation. 【 Advantages of Yinmei 】 Scratch resistant and wear-resistant There are various treatment processes for the surface of the Yinmei vacuum table, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process is selected according to actual needs, among which the hard oxidation process is the most scratch resistant and wear-resistant, and its surface hardness can reach HV500-700. 【 Advantages of Yinmei 】 Yinmei vacuum table is widely used Vacuum suction tables are applied in industries such as UV flatbed printing, flexible material cutting, PCB drilling and testing, vacuum bonding, screen printing, robot 3D printing, etc., for high-precision machining or precision milling of metal blocks or sheets.
Screen Printers Machine Vacuum Tables Vacuum Chucks
Screen Printers Machine Vacuum Tables Vacuum Chucks Specifications Spec（mm） Thickness（mm） Panelaperture（mm） Panel hole spacing（mm） Panel material Interface method MAX: 25 1 15 Aluminium alloy flange 4000*2100 35.5 1.5 20 stainless steel screw 42.5 2 53.5 Surface Treatment Flatness Panel Thickness Back Thickness Pumping Aperture Partition Hard oxidation ≤0.2mm 2 2 ɸ50 Customizable PVDF 3 ɸ 40 Aluminum primary ɸ 30 Customizable Product Introduction: 【 Advantages of Yinmei 】 One piece minimum order We can customize the diameter and spacing of adsorption holes, specifications and positions of suction ports, range and differentiation of adsorption areas, size, shape, surface treatment process, processing, etc. according to customer needs. 【 Advantages of Yinmei 】 Customizable in various sizes Yinmei can produce vacuum tables with dimensions of 4000mm * 2100mm (without splicing) 【 Advantages of Yinmei 】 High flatness The Yinmei vacuum table has good flatness and deflection, with flatness generally controlled within 30 threads and a minimum of 10 threads; The deflection value is less than 10 threads under a force of 30 kilograms. 【 Advantages of Yinmei 】 Free customization Customization of sensing windows, punching, riveting and other processing can be freely carried out. The vacuum suction table can be fixed or installed on other equipment according to the customer's situation. 【 Advantages of Yinmei 】 Lightweight&High Strength The interior of the Yinmei vacuum table adopts an aluminum honeycomb structure, which is lightweight and has strong load-bearing capacity. All aluminum alloy materials are used, with a density of about 25-35 kilograms per square meter and a load-bearing capacity of 30 kilograms without deformation. 【 Advantages of Yinmei 】 Scratch resistant and wear-resistant There are various treatment processes for the surface of the Yinmei vacuum table, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process is selected according to actual needs, among which the hard oxidation process is the most scratch resistant and wear-resistant, and its surface hardness can reach HV500-700. 【 Advantages of Yinmei 】 Yinmei vacuum table is widely used. Vacuum suction tables are applied in industries such as UV flatbed printing, flexible material cutting, PCB drilling and testing, vacuum bonding, screen printing, robot 3D printing, etc., for high-precision machining or precision milling of metal blocks or sheets. FAQ : 1、 About Customized Services Q1: What types of customized services does Foshan Yinmei Vacuum Table Technology Co.,Ltd. provide? A: We provide comprehensive vacuum table customization services, including size customization, material selection, adsorption function configuration, etc. Q2: How to start the customization process? A: You can contact our sales team through the backend to preliminarily discuss your needs and budget. Subsequently, our professional engineers will liaise with you in detail to confirm requirements and conduct preliminary scheme design. 2、 Material and specifications Q3: What materials can be used for customized vacuum table? A: Yinmei mainly provides aluminum alloy and stainless steel materials. Q4: Is there a size limit for customized vacuum table? A: The advantage of Yinmei customized services lies in flexibility. We can produce vacuum table with a maximum size of 4000 mm * 2100 mm (which can be spliced beyond the range). The specific size needs to be determined based on your actual usage situation. 3、 Design and Functionality Q5: Can a design draft preview be provided? A: Of course, once the design proposal is finalized, we will provide detailed design drawings for you to preview. 4、 Production and Delivery Q7: What is the production cycle for customized products? A: The production cycle varies depending on the complexity of product processing and the current factory order volume, and is usually completed within 25-30 days after confirming the design plan and paying the deposit. We will maintain close communication with you to ensure production progress.
Suction And Air Floating Integrated Table Vacuum Chucks Table
Absorption and floatation integrated platform YM-1300*800*42.5, adsorption air floatation dual use, arbitrary conversion, convenient operation
Water Circulation Constant Temperature Cooling Vacuum Table
Water Circulation Constant Temperature Cooling Vacuum Table Specifications
Constant Temperature Suction Water Circulation Constant Temperature Vacuum Table
Customize according to the drawings,constant Temperature Suction Water Circulation Constant Temperature Vacuum Table
Corrugated Paper Leather Belt Printing Machine Vacuum Table Chuck Plate
Corrugated Paper Leather Belt Printing Machine Vacuum Table Spec（mm） Thickness（mm） Panelaperture（mm） Panel hole spacing（mm） Panel material Interface method MAX: 25 1 15 Aluminium alloy flange 4000*2100 35.5 1.5 20 stainless steel screw 42.5 2 53.5 Surface Treatment Flatness Panel Thickness Back Thickness Pumping Aperture Partition Hard oxidation ≤0.2mm 2 2 ɸ50 Customizable PVDF 3 ɸ 40 Aluminum primary ɸ 30 Customizable Product Introduction: 【 Advantages of Yinmei 】 One piece minimum order We can customize the diameter and spacing of adsorption holes, specifications and positions of suction ports, range and differentiation of adsorption areas, size, shape, surface treatment process, processing, etc. according to customer needs. 【 Advantages of Yinmei 】 Customizable in various sizes Yinmei can produce vacuum tables with dimensions of 4000mm * 2100mm (without splicing) 【 Advantages of Yinmei 】 High flatness The Yinmei vacuum table has good flatness and deflection, with flatness generally controlled within 30 threads and a minimum of 10 threads; The deflection value is less than 10 threads under a force of 30 kilograms. 【 Advantages of Yinmei 】 Free customization Customization of sensing windows, punching, riveting and other processing can be freely carried out. The vacuum suction table can be fixed or installed on other equipment according to the customer's situation. 【 Advantages of Yinmei 】 Lightweight&High Strength The interior of the Yinmei vacuum table adopts an aluminum honeycomb structure, which is lightweight and has strong load-bearing capacity. All aluminum alloy materials are used, with a density of about 25-35 kilograms per square meter and a load-bearing capacity of 30 kilograms without deformation. 【 Advantages of Yinmei 】 Scratch resistant and wear-resistant There are various treatment processes for the surface of the Yinmei vacuum table, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process is selected according to actual needs, among which the hard oxidation process is the most scratch resistant and wear-resistant, and its surface hardness can reach HV500-700. 【 Advantages of Yinmei 】 Yinmei vacuum table is widely used Vacuum vacuum table are applied in industries such as UV flatbed printing, flexible material cutting, PCB drilling and testing, vacuum bonding, screen printing, robot 3D printing, etc., for high-precision machining or precision milling of metal blocks or sheets. FAQ : 1、 About Customized Services Q1: What types of customized services does Foshan Yinmei Vacuum Table Technology Co.,Ltd. provide? A: We provide comprehensive vacuum table customization services, including size customization, material selection, adsorption function configuration, etc. Q2: How to start the customization process? A: You can contact our sales team through the backend to preliminarily discuss your needs and budget. Subsequently, our professional engineers will liaise with you in detail to confirm requirements and conduct preliminary scheme design. 2、 Material and specifications Q3: What materials can be used for customized vacuum table? A: Yinmei mainly provides aluminum alloy and stainless steel materials. Q4: Is there a size limit for customized vacuum table? A: The advantage of Yinmei customized services lies in flexibility. We can produce vacuum table with a maximum size of 4000 mm * 2100 mm (which can be spliced beyond the range). The specific size needs to be determined based on your actual usage situation. 3、 Design and Functionality Q5: Can a design draft preview be provided? A: Of course, once the design proposal is finalized, we will provide detailed design drawings for you to preview. 4、 Production and Delivery Q7: What is the production cycle for customized products? A: The production cycle varies depending on the complexity of product processing and the current factory order volume, and is usually completed within 25-30 days after confirming the design plan and paying the deposit. We will maintain close communication with you to ensure production progress.

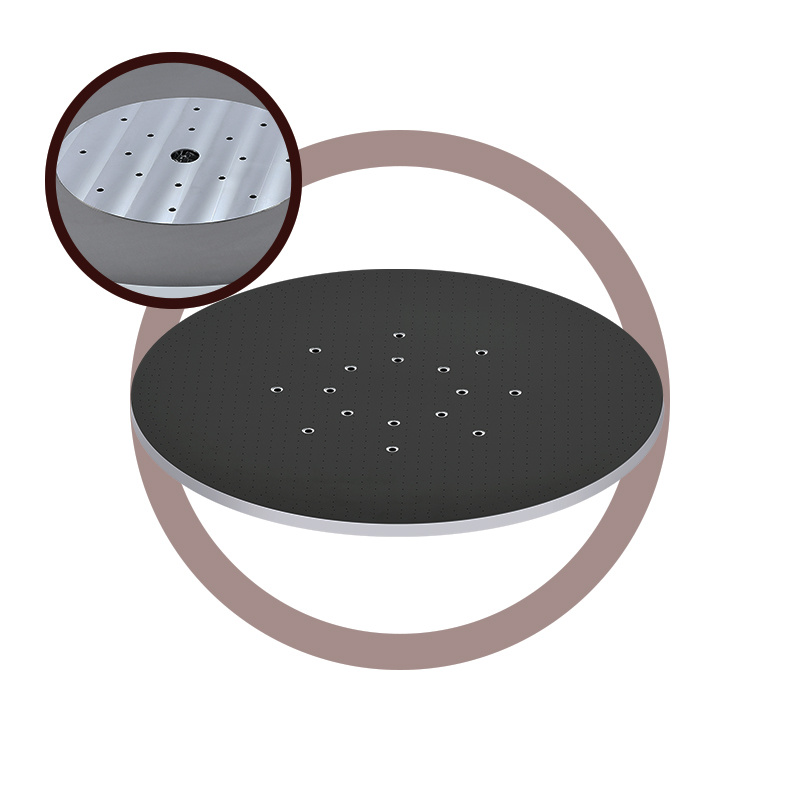

Yinmei can customize various shapes of suction tables，Circular Vacuum Table Chuck

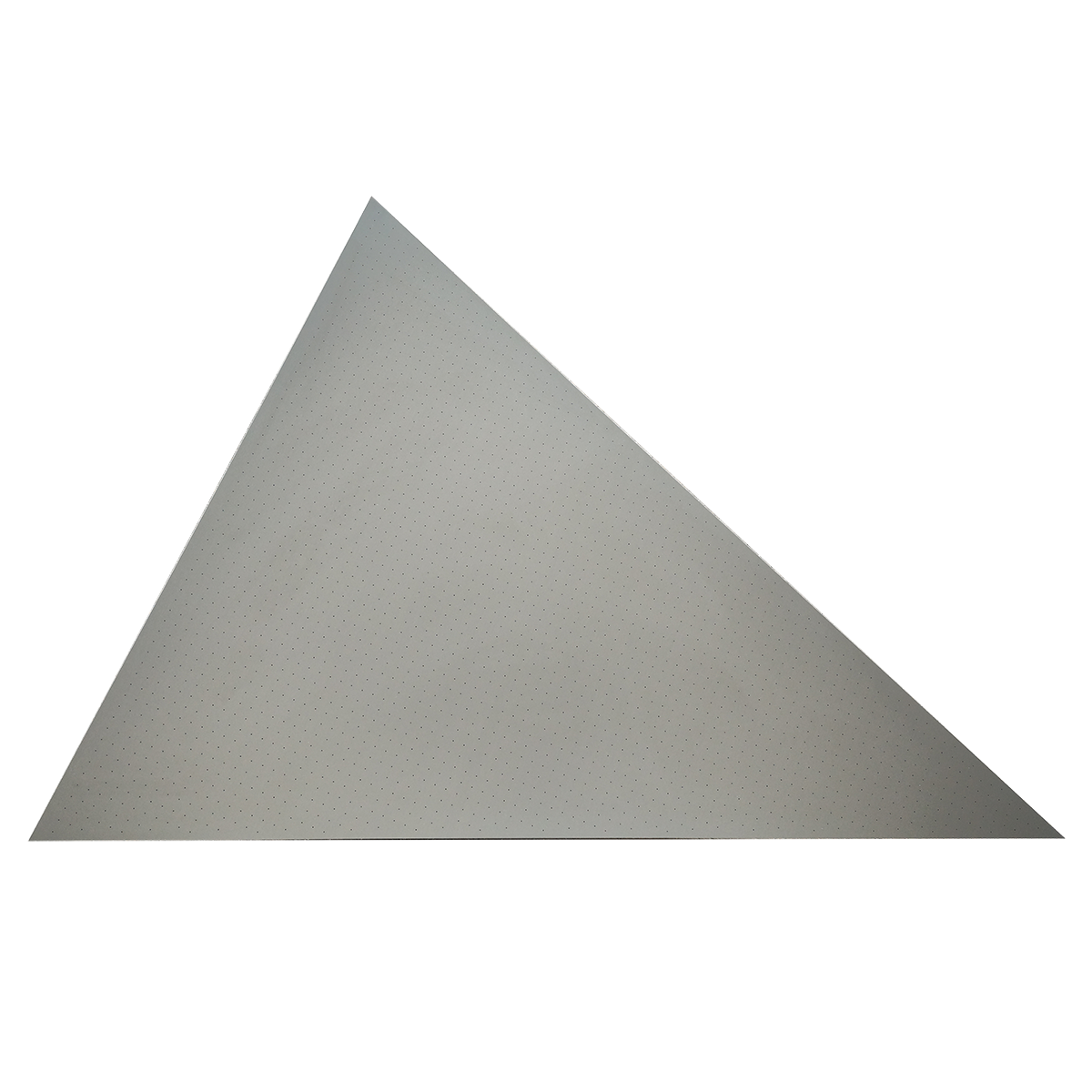

Yinmei can customize various shapes of vacuum tables，Triangle Vacuum Table
Stainless steel cutting machine vacuum honeycomb table
1. Ultra high precision plane, with large and uniform adsorption force. 2. Stainless steel panel material, high hardness, scratch resistance and wear resistance. 3. The internal honeycomb structure has high structural strength and stability.
Heating and adsorption platform with chassis, integrated heating and adsorption heating and adsorption platform It can be heated up to 150 degrees Celsius, with a multifunctional button (the multi key temperature adjustment function allows you to easily set and adjust the temperature according to experimental needs), a temperature display controller, high accuracy, safe, simple, clear, and convenient operation. The entire panel is made of aluminum alloy material, which has the characteristics of high thermal conductivity, fast heating, and uniform heating. Equipped with a protective switch, it can automatically cut off the power supply in case of equipment overheating or other problems, ensuring safety during use. The three plug chassis also makes the power connection more stable and secure. This integrated heating and adsorption platform chassis integrates multiple practical designs and functions, which can meet various practical needs while also having high safety and convenience.
