Heat Transfer Silk Screen Printing Machine


key word:



Product details


Yinmei has many years of experience in the field of vacuum suction table manufacturing, 10多年的经验,

The goal has always been consistent: to manufacture vacuum suction tables that satisfy customers;

The surface is treated with hard oxidation to achieve scratch resistance and wear resistance;

Lightweight sandwich design achieves an excellent strength-to-weight ratio;

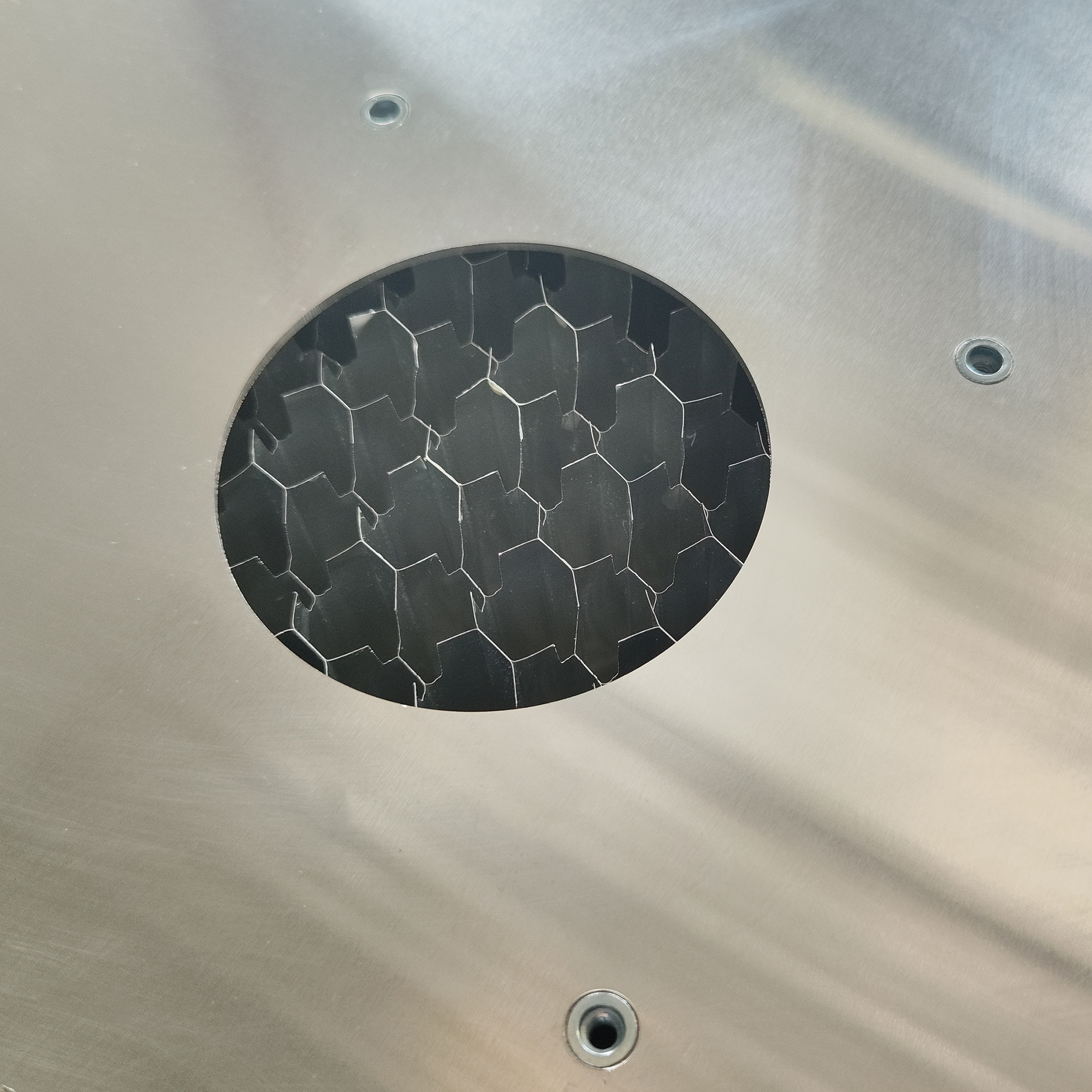

The honeycomb core provides uniform airflow, thereby minimizing resistance.



Product Name: Heat Transfer Silk Screen Printer

Product Features:

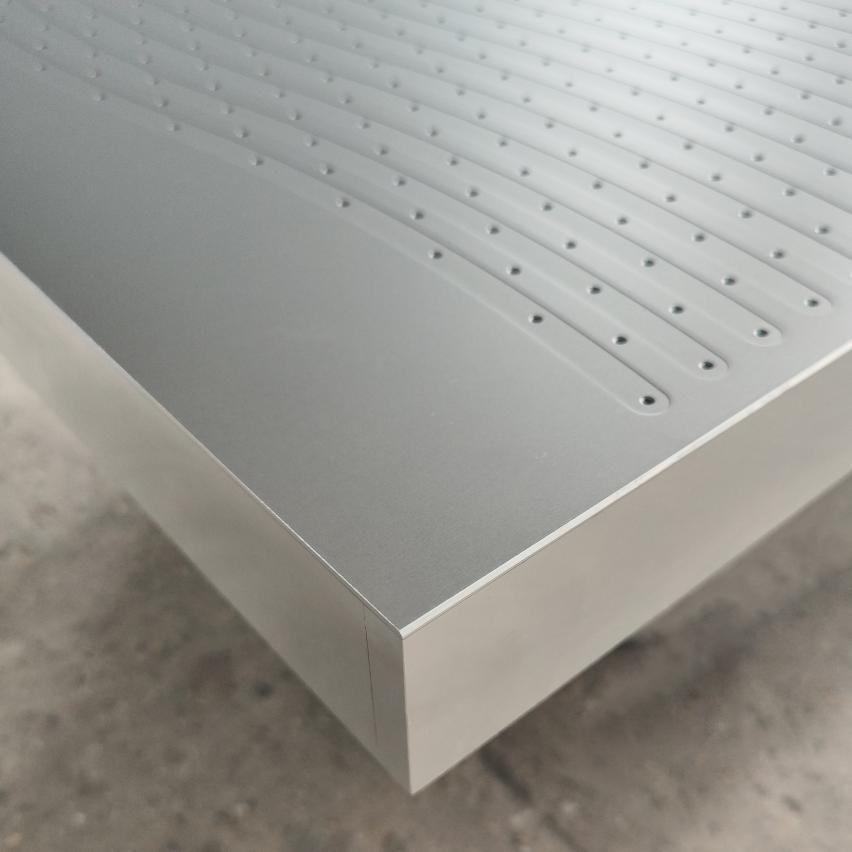

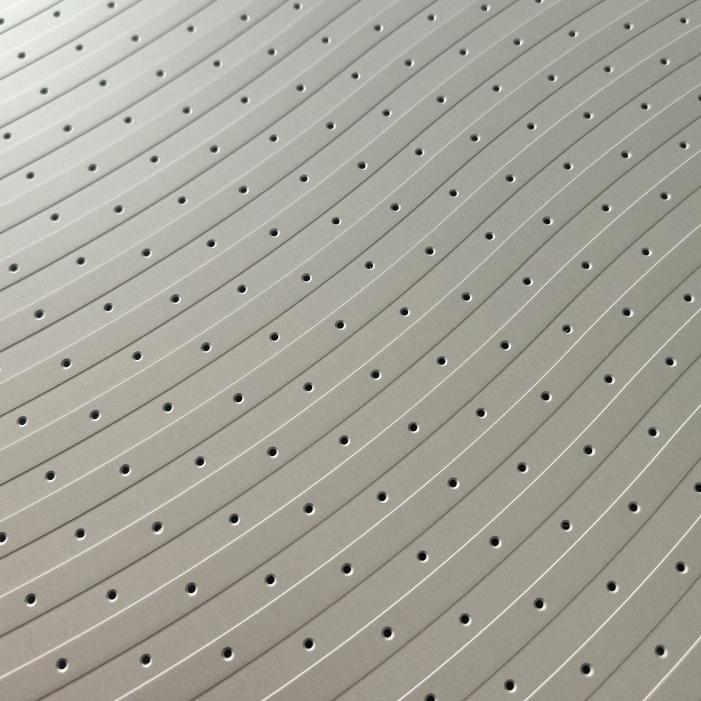

1. Flatness ≤ 0.1mm , customizable suction grooves

  1. Strong suction, uniform suction



  1. Honeycomb structure, lightweight, high strength

Yinmei Suction Table Parameters and Customization

Yinmei Suction Table Technical Parameters and Features

Platform Specifications

Platform Thickness

Panel Aperture

Panel Hole Spacing

Panel Material

Interface Type

2500*1300*42.5

42.5

0.8

20

Alloy Aluminum

Flange



Surface Treatment

Flatness mm

Panel Thickness

Base Plate Thickness

Suction Port Diameter

Hard Oxidation

0.10

2.0

2.0

Φ 50

The above parameters can be customized by customers according to the diagram below

Platform Specifications

Platform Thickness

Panel Aperture

Panel Hole Spacing

Section Area

Interface Type

Customizable

25



0.8

10



Customizable

Flange



MAX:4000*2100

35.5



1.0

20





Pipe Thread



42.5



1.5

30







53.5



Customizable









75

















Surface Treatment

Flatness mm

Panel Thickness

Base Plate Thickness

Suction Port Diameter

Hard Oxidation

0.10

2.0

2.0

Φ 40

Bright Aluminum





3.0

Φ 50

PVDF







Φ 75









Customizable









Yinmei Suction Table Features

Yinmei suction table is an aluminum honeycomb structure , Made of aluminum alloy material , The surface has extremely high flatness , In addition to the advantages of aluminum honeycomb panels such as light weight, high strength, high rigidity, bending resistance, and flexural resistance, , it also has advantages such as high flatness, low deflection, strong suction, and scratch and wear resistance.



Detailed advantages are as follows :

1. Large surface with high flatness

The maximum length and width of the Yinmei suction table panel can reach 4000*2100mm( Sizes exceeding this length and width can be spliced ) ). It has excellent flatness and deflection , Flatness is generally controlled within 0.10mm以内, Minimum can reach 5um; Deflection value under added force 30 kilograms is less than 0.10mm



2. Light weight with high load capacity

Yinmei suction table uses aerospace-grade aluminum honeycomb structure , Fully aluminum alloy integrated composite molding. With lightweight design, , single point load exceeds 60kg/m² No deformation , Combines high strength and stability.



3. Strong and uniform suction

Yinmei suction table is optimized in design , Strong suction power , No suction loss , Uniform suction at any position.



4. Scratch and wear resistance

Yinmei suction table surface can be treated with natural oxidation and hard oxidation , Among them, hard oxidation treatment provides the best scratch and wear resistance, with surface hardness up to HV500



5. Customer Customization

Yinmei suction tables are customized according to customer drawings and requirements.







FAQ Basic Questions:



1. About Customization Service

Q1: What types of customization services does Foshan Yinmei Suction Table Manufacturing Co., Ltd. provide?
A: We provide comprehensive vacuum suction platform customization services, including size customization, material selection, suction function configuration, etc.



Q2: How to start the customization process?
A: You can contact our sales through the backend to initially discuss your needs and budget. Then, our professional engineers will coordinate with you in detail to confirm requirements and design preliminary plans.



2. Materials and Specifications

Q3: What materials can be selected for customized suction tables?
A: Yinmei mainly provides aluminum alloy and stainless steel materials.



Q4: Are there size limitations for custom suction tables?
A: The advantage of Yinmei's customization service lies in its flexibility. We can produce suction tables up to 4000 mm * 2100 mm in size (larger sizes can be spliced). The specific size should be determined based on your actual usage.



3. Design and Function

Q5: Can you provide a preview of the design drawings?
A: Of course, after the design plan is finalized, we will provide detailed design drawings for your preview.



4. Production and Delivery

Q6: What is the production cycle for custom products?
A: The production cycle varies depending on the complexity of product processing and the current factory order volume. Usually, it is completed within 25-30 days after confirming the design plan and paying the deposit. We will maintain close communication with you to ensure production progress.



Q7: How is product transportation and installation arranged?
A: We provide nationwide transportation services and can arrange a professional installation team on-site according to customer needs for installation and debugging, ensuring the product is put into use smoothly.



5. After-sales Service

Q8: What after-sales services are available for custom products?
A: We provide a one-year warranty service for all custom products.
