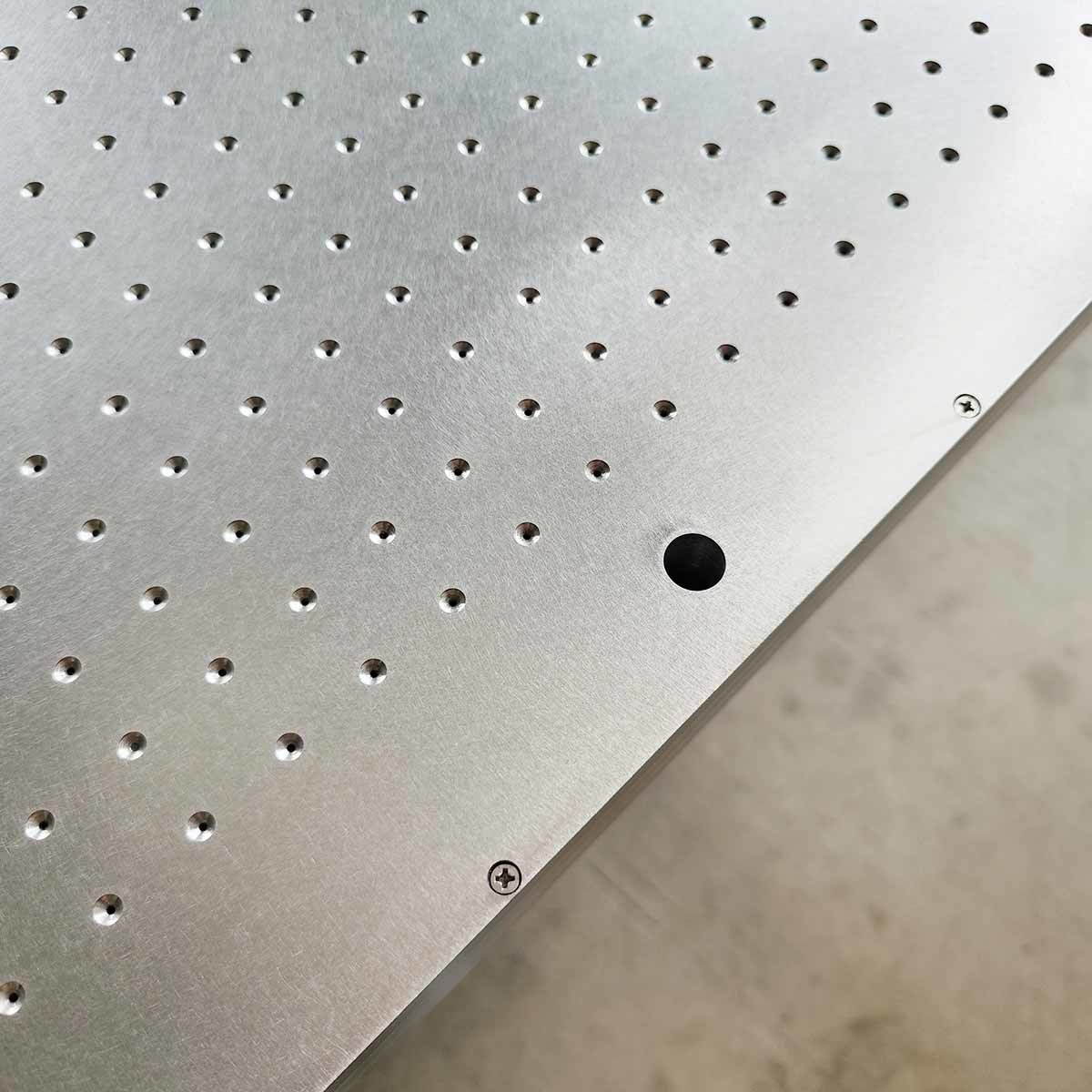

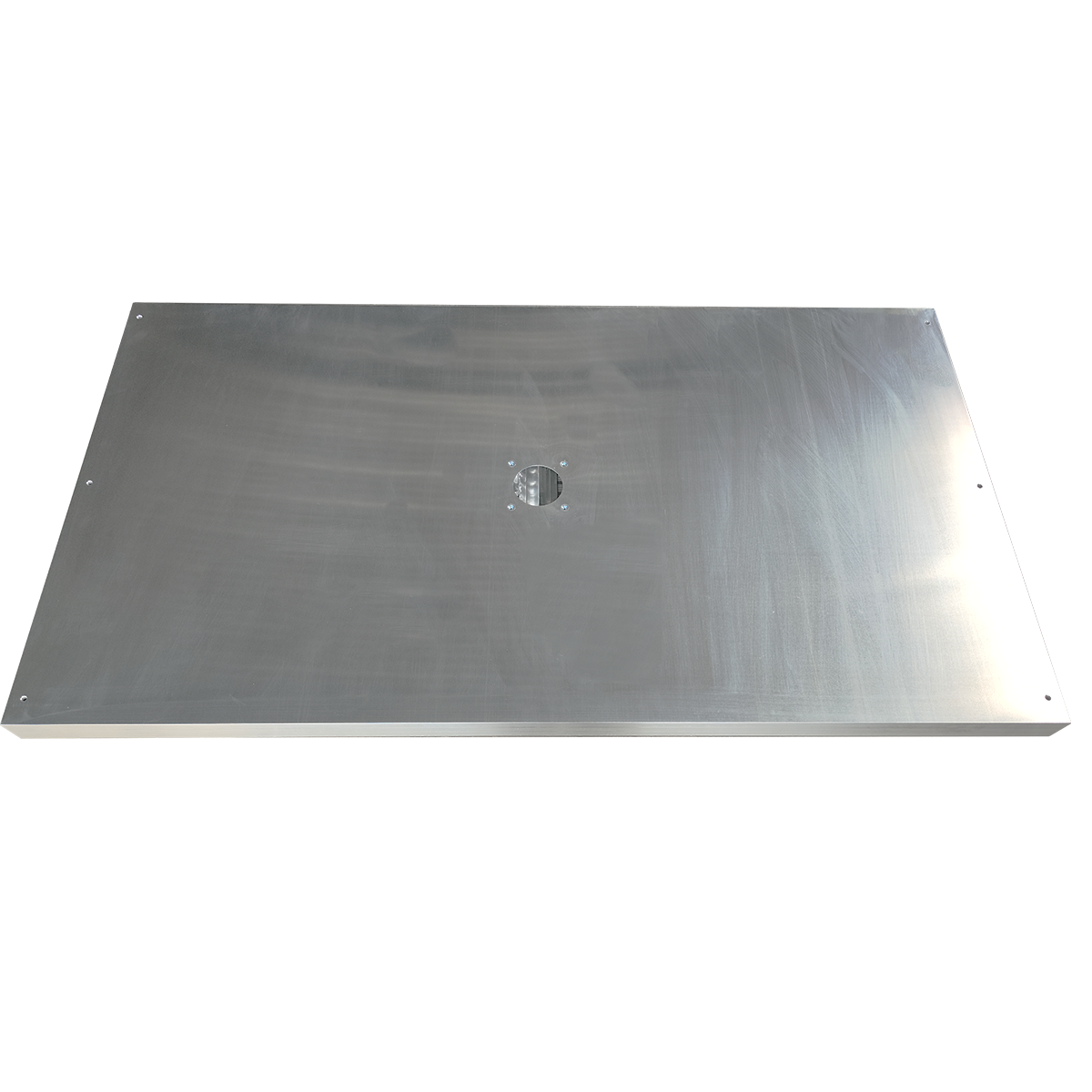

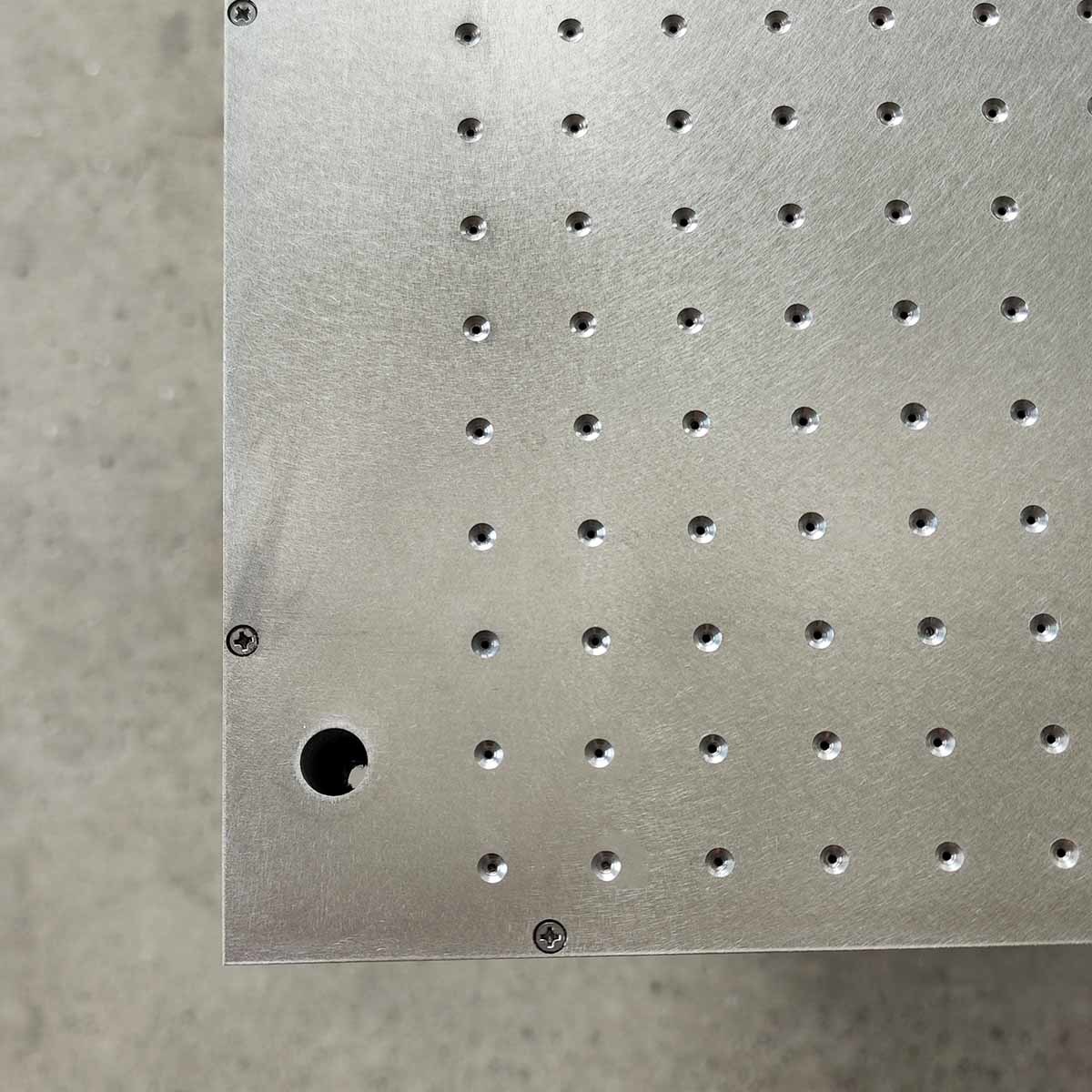

Stainless Steel Cutting Machine Vacuum Table
1. Ultra-high precision flat surface, with strong and uniform adsorption. 2. The panel material is stainless steel, with high hardness, scratch resistance, and wear resistance. 3. Internal honeycomb structure, with high and stable structural strength.
key word:
Stainless steel
platform
adsorption
panel
vacuum
suction
Classification:
Product details
Technical Parameters And Characteristics
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PANEL MATERIAL |
INTERFACE MODE |
|
2500*1300*42.5 |
42.5 |
0.8 |
20 |
Aluminum alloy |
flange |
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ50 |
|
Above Technical Specifications Can Be Customized Basing On The Following Date
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PARTITION |
INTERFACE MODE |
|
Customized |
25 |
0.8 |
10 |
|
flange |
|
|
35.5 |
1.0 |
20 |
Customized |
Screw |
|
|
42.5 |
1.5 |
30 |
|
|
|
MAX:4000*2100 |
53.5 |
Customized |
|
|
|
|
|
75 |
|
|
|
|
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ40 |
|
|
Aluminium primary |
|
|
3.0 |
Φ50 |
|
|
PVDF |
|
|
2.0 |
Customized |
|

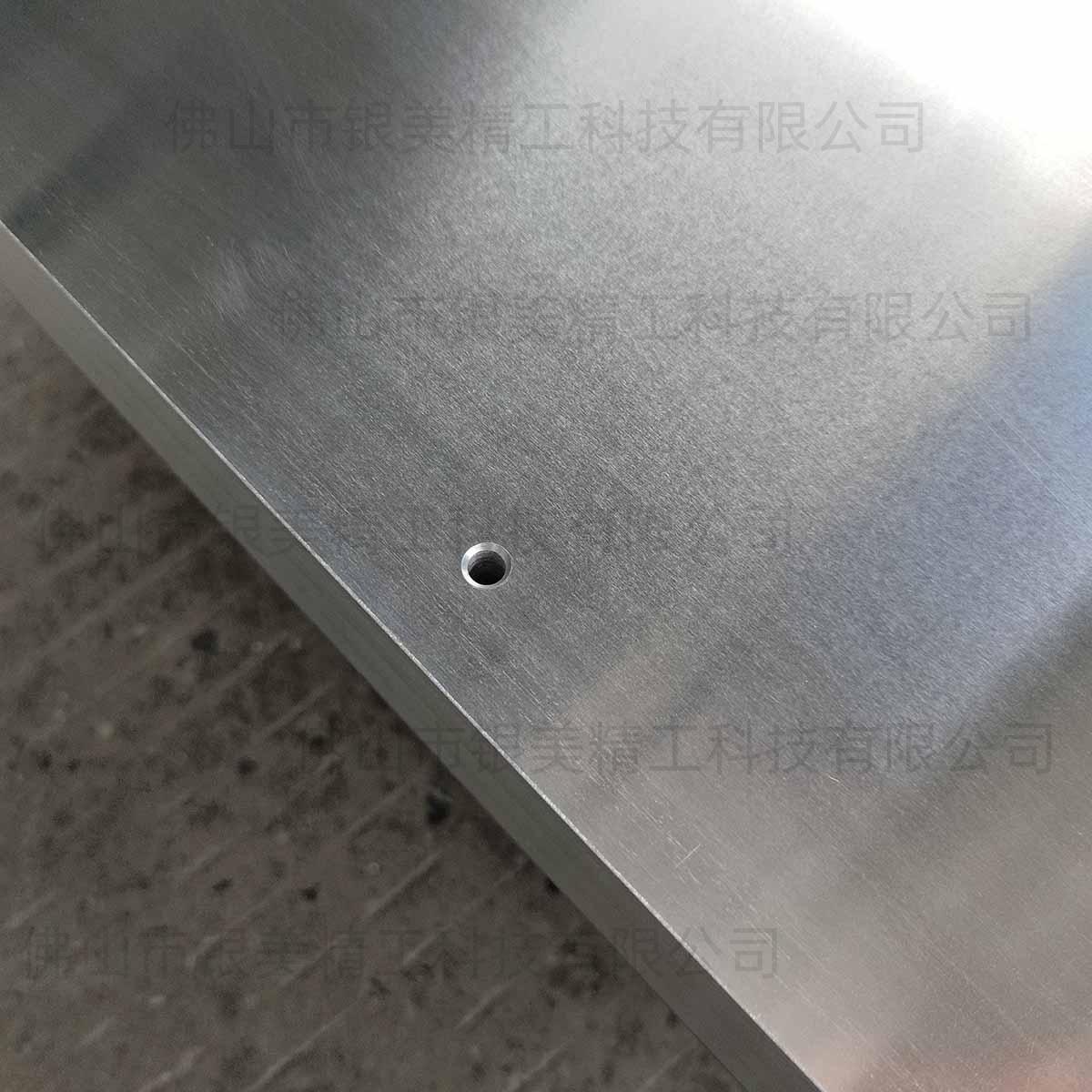

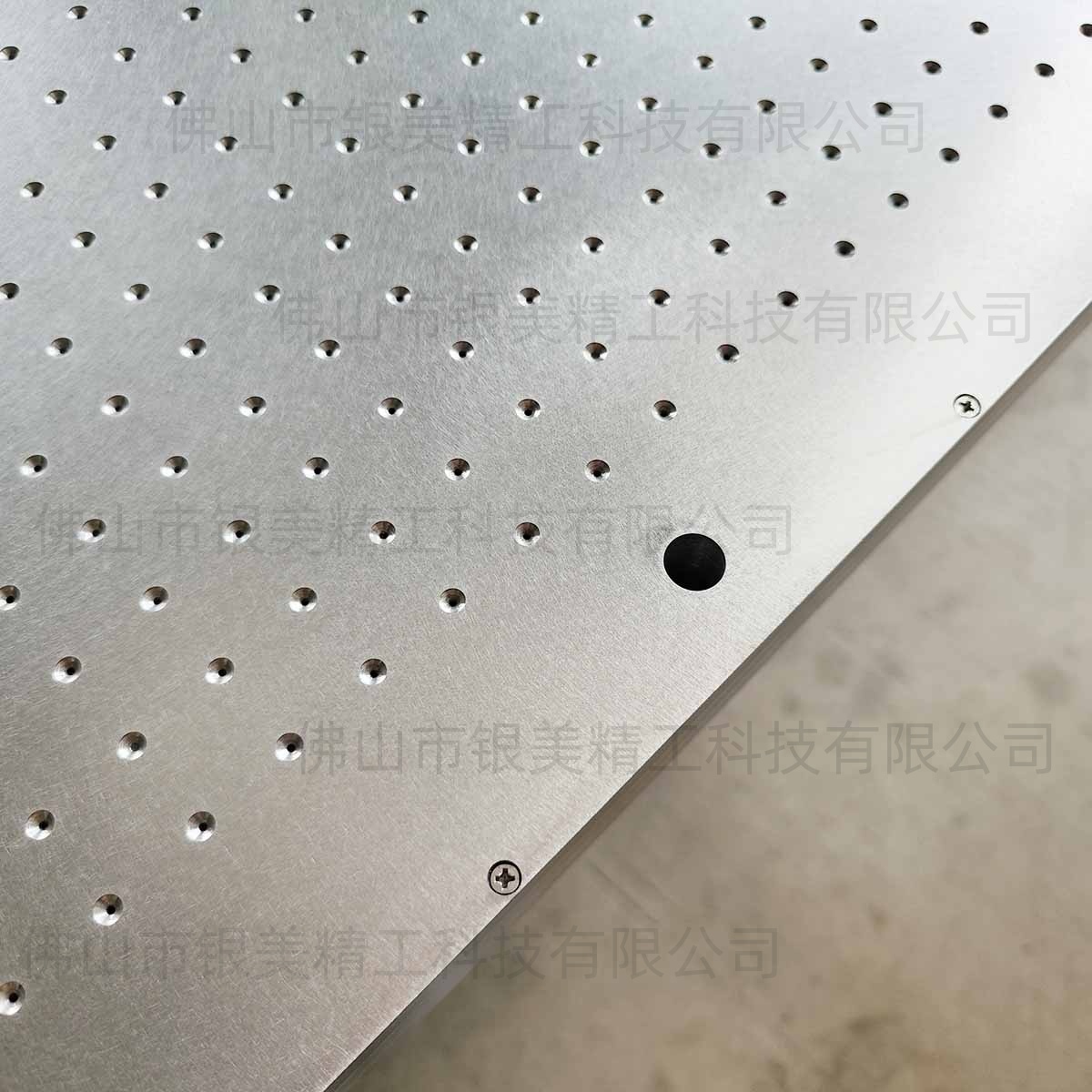

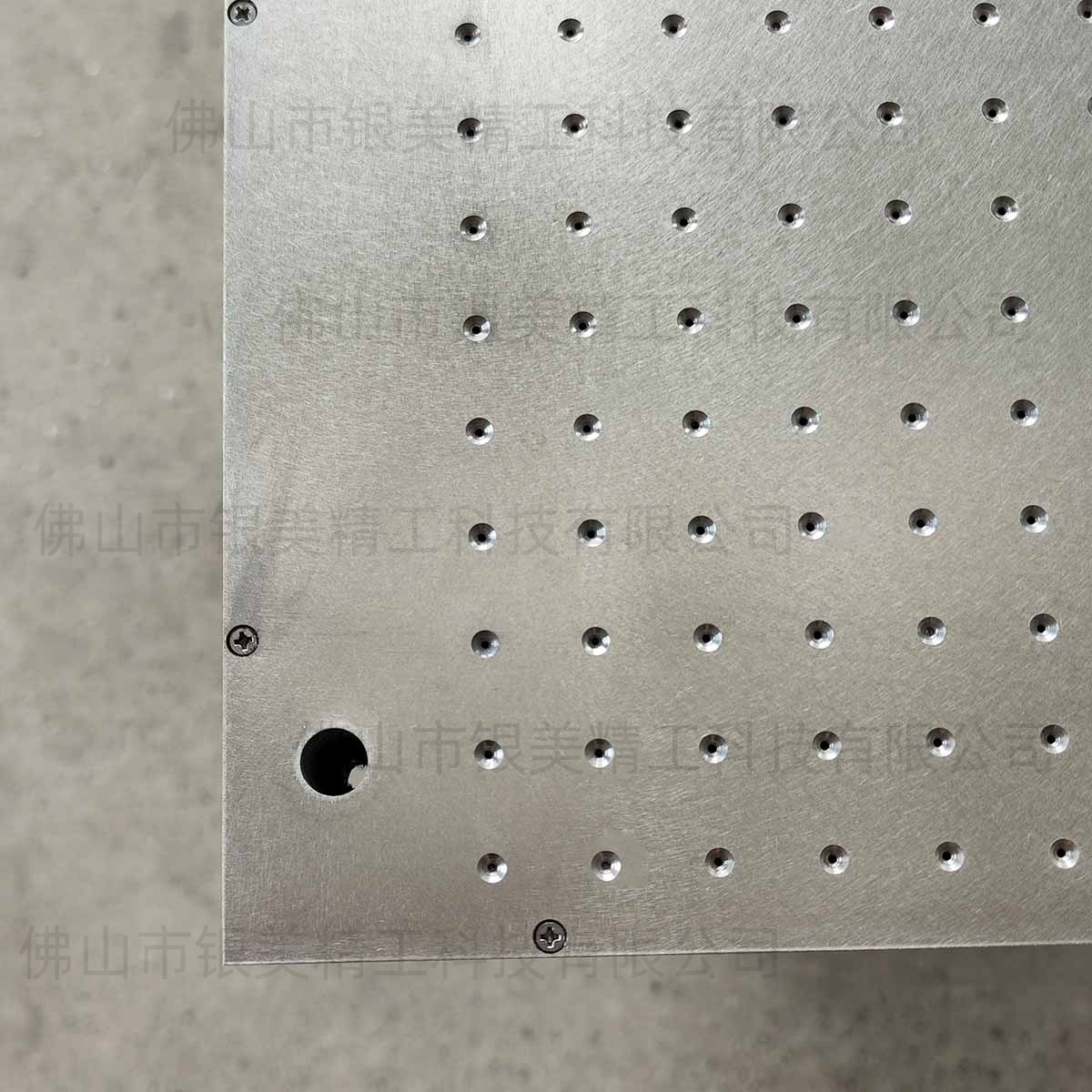

Stainless Steel Cutting Machine Vacuum Table
1.Precisepositioning&stableclamping.
- High-strengthhoneycombstructure.
3.Patenteddesigndeliverspowerfulsuctionwithzeroloss.
Characteristics Of YIMIWELL Vacuum Table:
Yimiwell Vacuum Table are made of aluminum alloy in honeycomb structure, with extremely high flatness of surface. In addition to the advantages of light weight, high strength, high rigidity, bending resistance and deflection resistance, this platform also has the advantages of high flatness, small deflection value, large adsorption force, scratch resistance and wear resistance.
THE DETAILED ADVANTAGES ARE AS FOLLOWS:
LARGE SURFACE WITH HIGH FLATNESS
The maximum length and width dimensions of the Yimiwell vacuum table panel can reach 4000×2100mm (splicing is available for sizes exceeding this range). It boasts excellent flatness and deflection performance:
- Flatness: Generally controlled within 0.20mm, with the minimum down to 5μm.
- Deflection: Less than 0.10mm under a load of 30 kg.
LIGHT WEIGHT AND LARGE BEARING CAPACITY
Yimiwell vacuum table uses aviation-grade aluminum honeycomb structure with all-aluminum alloy integrated molding. Lightweight design ensures >60kg/m² single-point load-bearing without deformation, combining high strength and stability.
GREAT SUCTION IN WELL-DISTRIBUTED
Yimiwell vacuum table ensures the performance of the platform are not affected and also makes the suction force great in well-distributed at any position.
ANTI-SCRATCH AND WEAR-RESISTANT
The surface of Yimiwell vacuum table can undergo natural anodizing and hard anodizing treatments. Among them, hard anodizing provides the best scratch and wear resistance, with a maximum surface hardness of up to Hv500.
YIMIWELL VACUUM TABLE CAN BE CUSTOMIZED BASING ON CUSTOMER'S DEMAND.
