Screen Printers Machine Vacuum Tables Vacuum Chucks

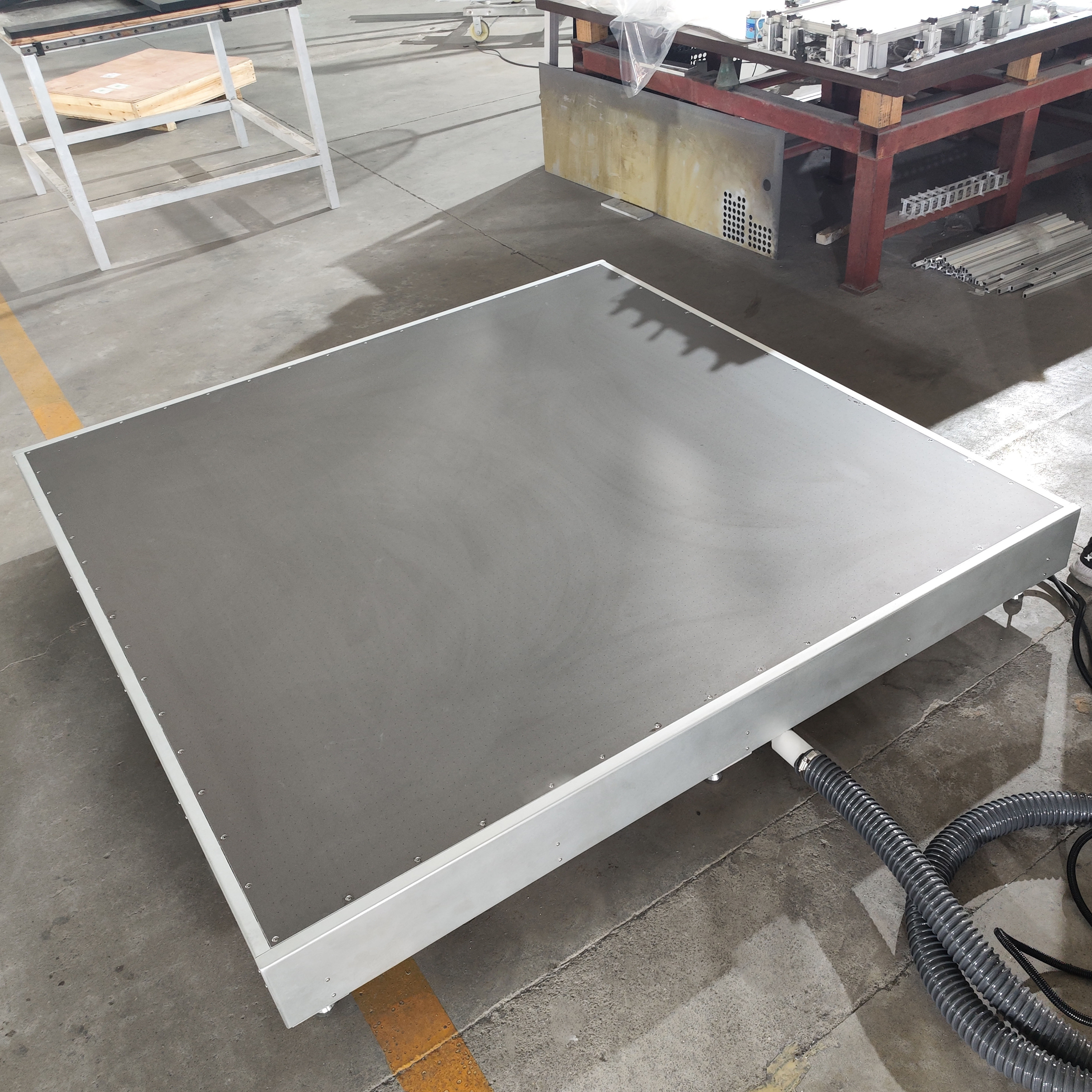

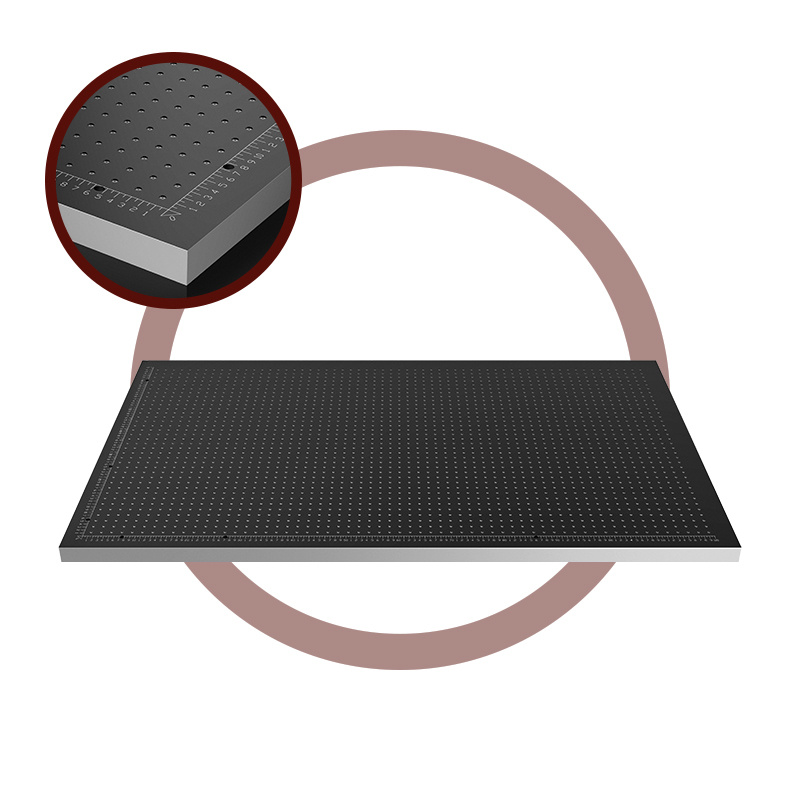

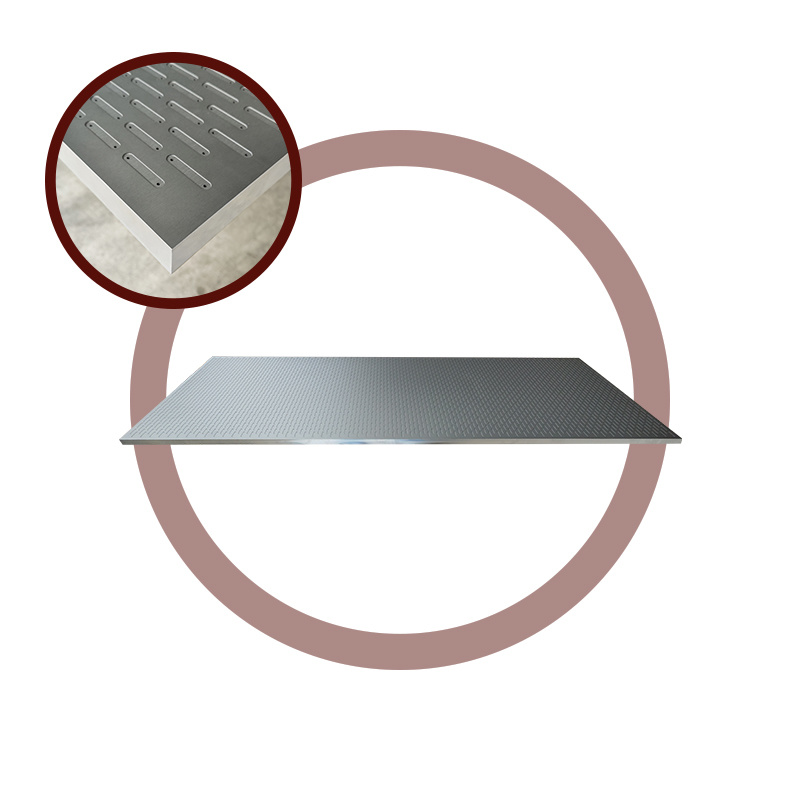

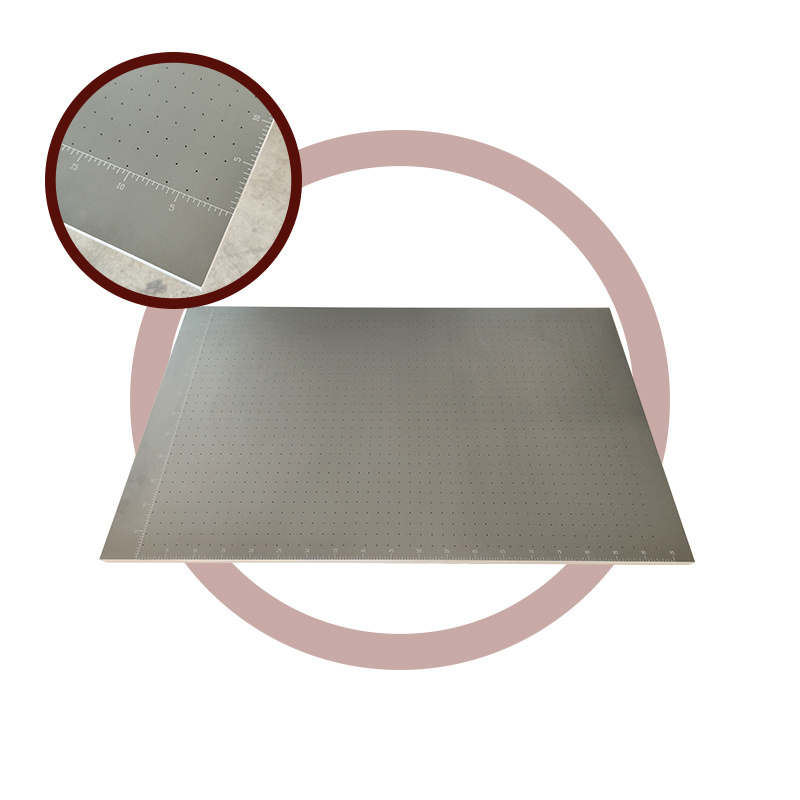

Screen Printers Machine Vacuum Tables Vacuum Chucks Specifications         Spec（mm） Thickness（mm） Panelaperture（mm） Panel hole spacing（mm） Panel material Interface method MAX: 25 1 15 Aluminium alloy flange 4000*2100 35.5 1.5 20 stainless steel screw   42.5 2         53.5           Surface Treatment Flatness Panel Thickness Back Thickness Pumping Aperture Partition Hard oxidation ≤0.2mm 2 2 ɸ50 Customizable PVDF     3 ɸ 40   Aluminum primary       ɸ 30           Customizable   Product Introduction: 【 Advantages of Yinmei 】 One piece minimum order We can customize the diameter and spacing of adsorption holes, specifications and positions of suction ports, range and differentiation of adsorption areas, size, shape, surface treatment process, processing, etc. according to customer needs.   【 Advantages of Yinmei 】 Customizable in various sizes Yinmei can produce vacuum tables with dimensions of 4000mm * 2100mm (without splicing)   【 Advantages of Yinmei 】 High flatness The Yinmei vacuum table has good flatness and deflection, with flatness generally controlled within 30 threads and a minimum of 10 threads; The deflection value is less than 10 threads under a force of 30 kilograms.   【 Advantages of Yinmei 】 Free customization Customization of sensing windows, punching, riveting and other processing can be freely carried out. The vacuum suction table can be fixed or installed on other equipment according to the customer's situation.   【 Advantages of Yinmei 】 Lightweight&High Strength The interior of the Yinmei vacuum table adopts an aluminum honeycomb structure, which is lightweight and has strong load-bearing capacity. All aluminum alloy materials are used, with a density of about 25-35 kilograms per square meter and a load-bearing capacity of 30 kilograms without deformation.   【 Advantages of Yinmei 】 Scratch resistant and wear-resistant There are various treatment processes for the surface of the Yinmei vacuum table, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process is selected according to actual needs, among which the hard oxidation process is the most scratch resistant and wear-resistant, and its surface hardness can reach HV500-700.   【 Advantages of Yinmei 】 Yinmei vacuum table is widely used. Vacuum suction tables are applied in industries such as UV flatbed printing, flexible material cutting, PCB drilling and testing, vacuum bonding, screen printing, robot 3D printing, etc., for high-precision machining or precision milling of metal blocks or sheets.   FAQ : 1、 About Customized Services Q1: What types of customized services does Foshan Yinmei Vacuum Table Technology Co.,Ltd. provide? A: We provide comprehensive vacuum table customization services, including size customization, material selection, adsorption function configuration, etc.   Q2: How to start the customization process? A: You can contact our sales team through the backend to preliminarily discuss your needs and budget. Subsequently, our professional engineers will liaise with you in detail to confirm requirements and conduct preliminary scheme design.   2、 Material and specifications Q3: What materials can be used for customized vacuum table? A: Yinmei mainly provides aluminum alloy and stainless steel materials.   Q4: Is there a size limit for customized vacuum table? A: The advantage of Yinmei customized services lies in flexibility. We can produce vacuum table with a maximum size of 4000 mm * 2100 mm (which can be spliced beyond the range). The specific size needs to be determined based on your actual usage situation.   3、 Design and Functionality Q5: Can a design draft preview be provided? A: Of course, once the design proposal is finalized, we will provide detailed design drawings for you to preview.   4、 Production and Delivery Q7: What is the production cycle for customized products? A: The production cycle varies depending on the complexity of product processing and the current factory order volume, and is usually completed within 25-30 days after confirming the design plan and paying the deposit. We will maintain close communication with you to ensure production progress.

Yinmei automatic screen printing platform

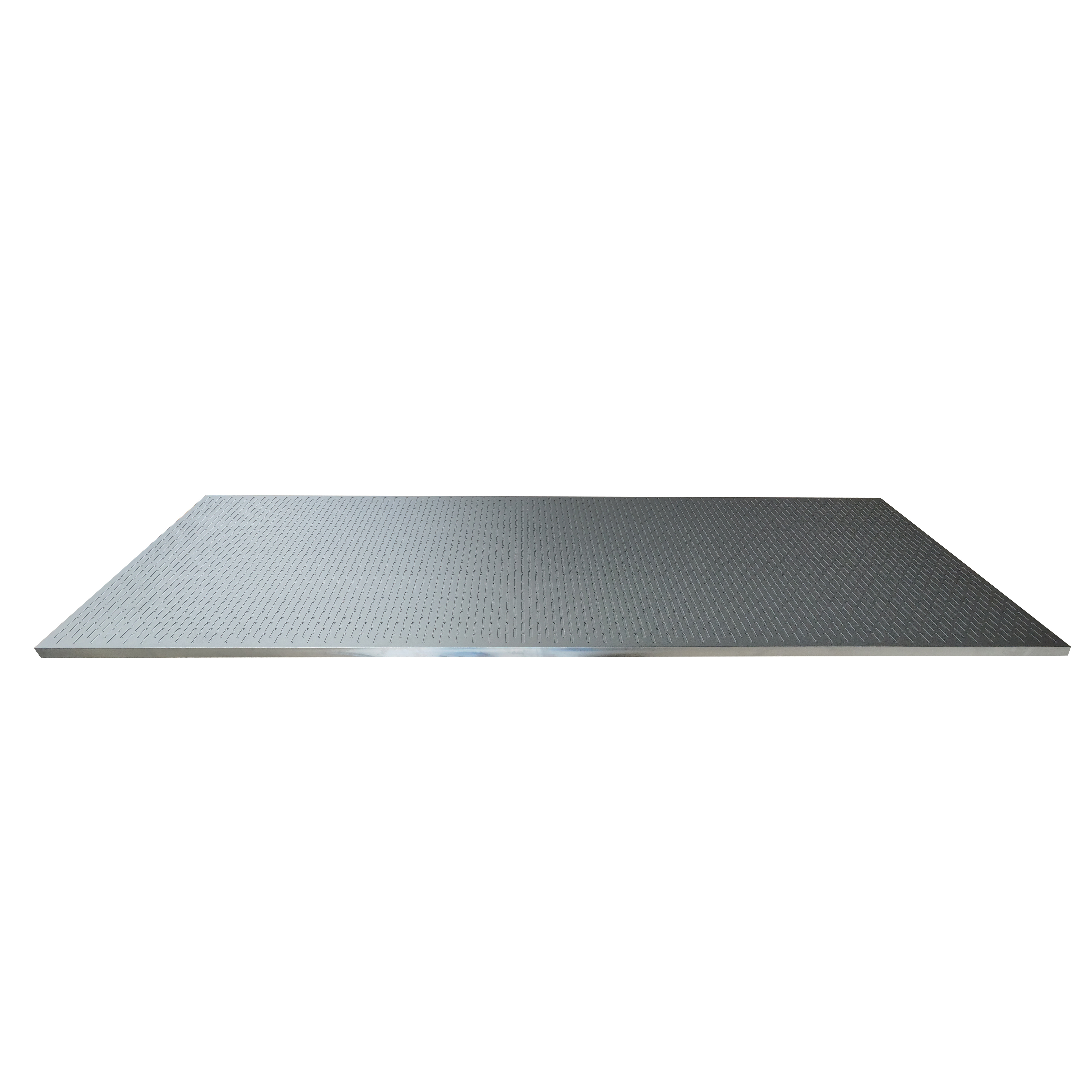

Yinmei automatic screen printing platform YM-1500*800*53.5 screen printing machine vacuum adsorption platform

Screen press adsorption platform B

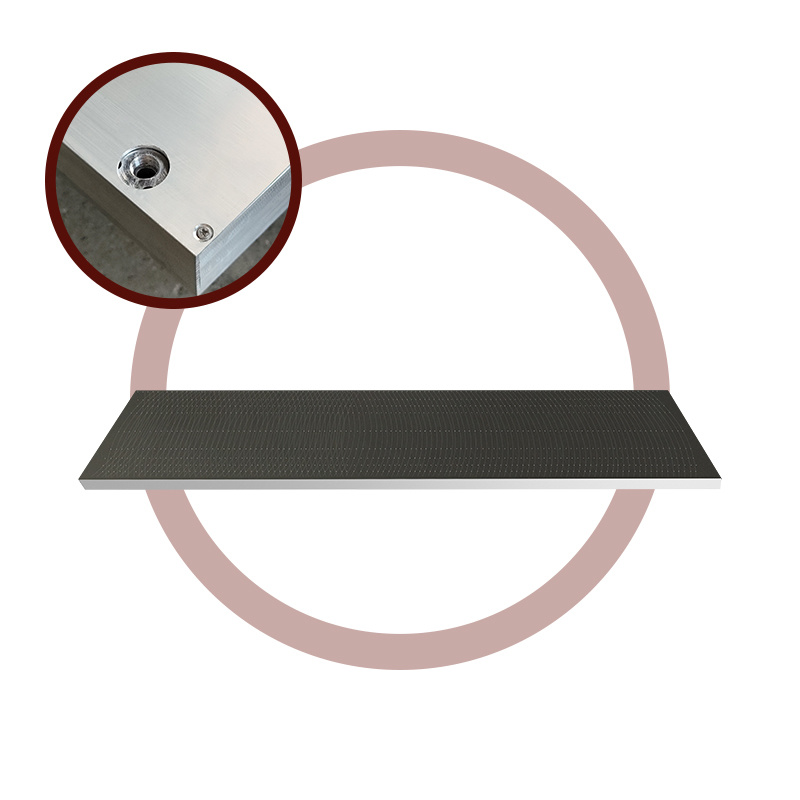

Screen printing press adsorption platform YM-1300*800*43.5 (with automatic positioning slot)

Screen press adsorption platform A

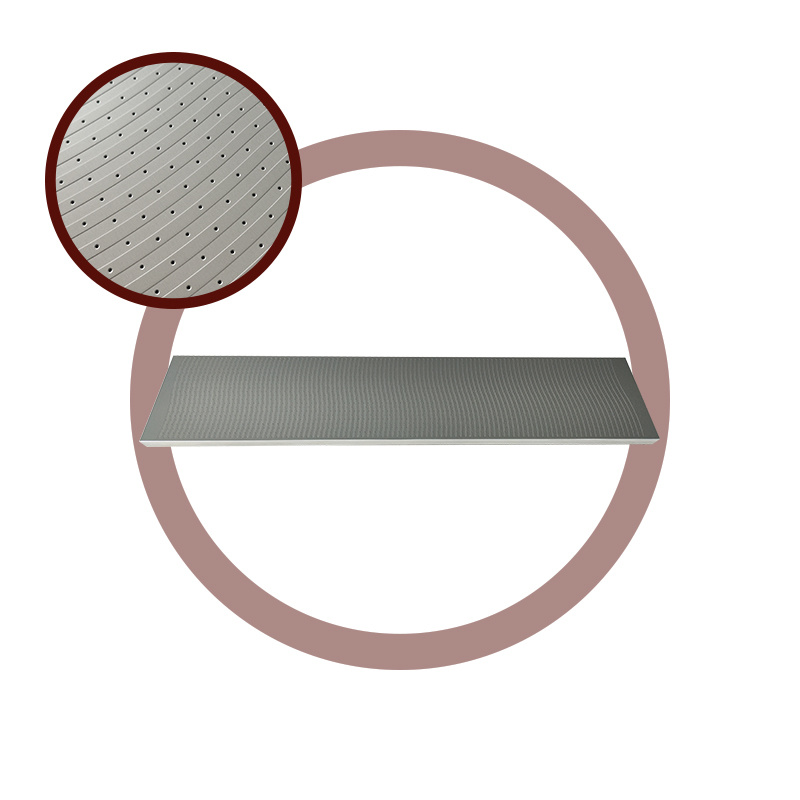

Screen printing press adsorption platform YM-1300*800*42.5 Yinmei Seiko Screen printing platform (straight hole 0.8)
