Specifications

Spec（mm）	Thickness（mm）	Panelaperture（mm）	Panel hole spacing（mm）	Panel material	Interface method
MAX:	25	1	15	Aluminium alloy	flange
4000*2100	35.5	1.5	20	stainless steel	screw
	42.5	2
	53.5
Surface Treatment	Flatness	Panel Thickness	Back Thickness	Pumping Aperture	Partition
Hard oxidation	≤0.2mm	2	2	ɸ50	Customizable
PVDF			3	ɸ 40
Aluminum primary				ɸ 30
				Customizable

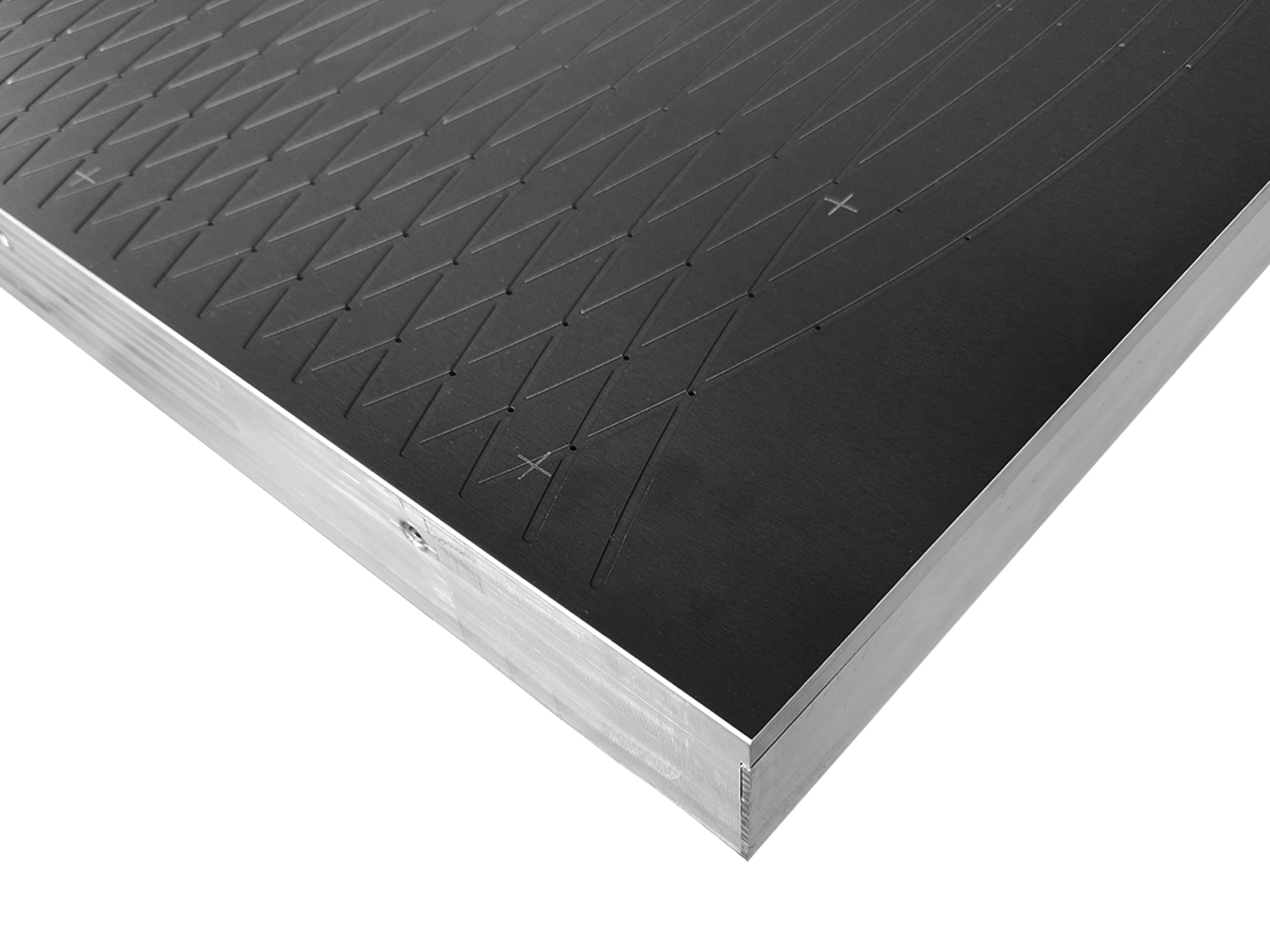

Product Introduction

【 Advantages of Yinmei 】 One piece minimum order

We can customize the diameter and spacing of adsorption holes, specifications and positions of suction ports, range and differentiation of adsorption areas, size, shape, surface treatment process, processing, etc. according to customer needs.



【 Advantages of Yinmei 】 Customizable in various sizes

Yinmei can produce vacuum tables with dimensions of 4000mm * 2100mm (without splicing)



【 Advantages of Yinmei 】 High flatness

The Yinmei vacuum table has good flatness and deflection, with flatness generally controlled within 30 threads and a minimum of 10 threads; The deflection value is less than 10 threads under a force of 30 kilograms.



【 Advantages of Yinmei 】 Free customization

Customization of sensing windows, punching, riveting and other processing can be freely carried out. The vacuum suction table can be fixed or installed on other equipment according to the customer's situation.



【 Advantages of Yinmei 】 Lightweight & High Strength

The interior of the Yinmei vacuum table adopts an aluminum honeycomb structure, which is lightweight and has strong load-bearing capacity. All aluminum alloy materials are used, with a density of about 25-35 kilograms per square meter and a load-bearing capacity of 30 kilograms without deformation.



【 Advantages of Yinmei 】 Scratch resistant and wear-resistant

There are various treatment processes for the surface of the Yinmei vacuum table, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process is selected according to actual needs, among which the hard oxidation process is the most scratch resistant and wear-resistant, and its surface hardness can reach HV500-700.



【 Advantages of Yinmei 】 Yinmei vacuum table is widely used

Vacuum vacuum table are applied in industries such as UV flatbed printing, flexible material cutting, PCB drilling and testing, vacuum bonding, screen printing, robot 3D printing, etc., for high-precision machining or precision milling of metal blocks or sheets.



FAQ



1、 About Customized Services

Q1: What types of customized services does Foshan Yinmei Vacuum Table Technology Co.,Ltd. provide?

A: We provide comprehensive vacuum table customization services, including size customization, material selection, adsorption function configuration, etc.



Q2: How to start the customization process?

A: You can contact our sales team through the backend to preliminarily discuss your needs and budget. Subsequently, our professional engineers will liaise with you in detail to confirm requirements and conduct preliminary scheme design.



2、 Material and specifications

Q3: What materials can be used for customized vacuum table?

A: Yinmei mainly provides aluminum alloy and stainless steel materials.



Q4: Is there a size limit for customized vacuum table?

A: The advantage of Yinmei customized services lies in flexibility. We can produce vacuum table with a maximum size of 4000 mm * 2100 mm (which can be spliced beyond the range). The specific size needs to be determined based on your actual usage situation.



3、 Design and Functionality

Q5: Can a design draft preview be provided?

A: Of course, once the design proposal is finalized, we will provide detailed design drawings for you to preview.



4、 Production and Delivery

Q6: What is the production cycle for customized products?

A: The production cycle varies depending on the complexity of product processing and the current factory order volume, and is usually completed within 25-30 days after confirming the design plan and paying the deposit. We will maintain close communication with you to ensure production progress.

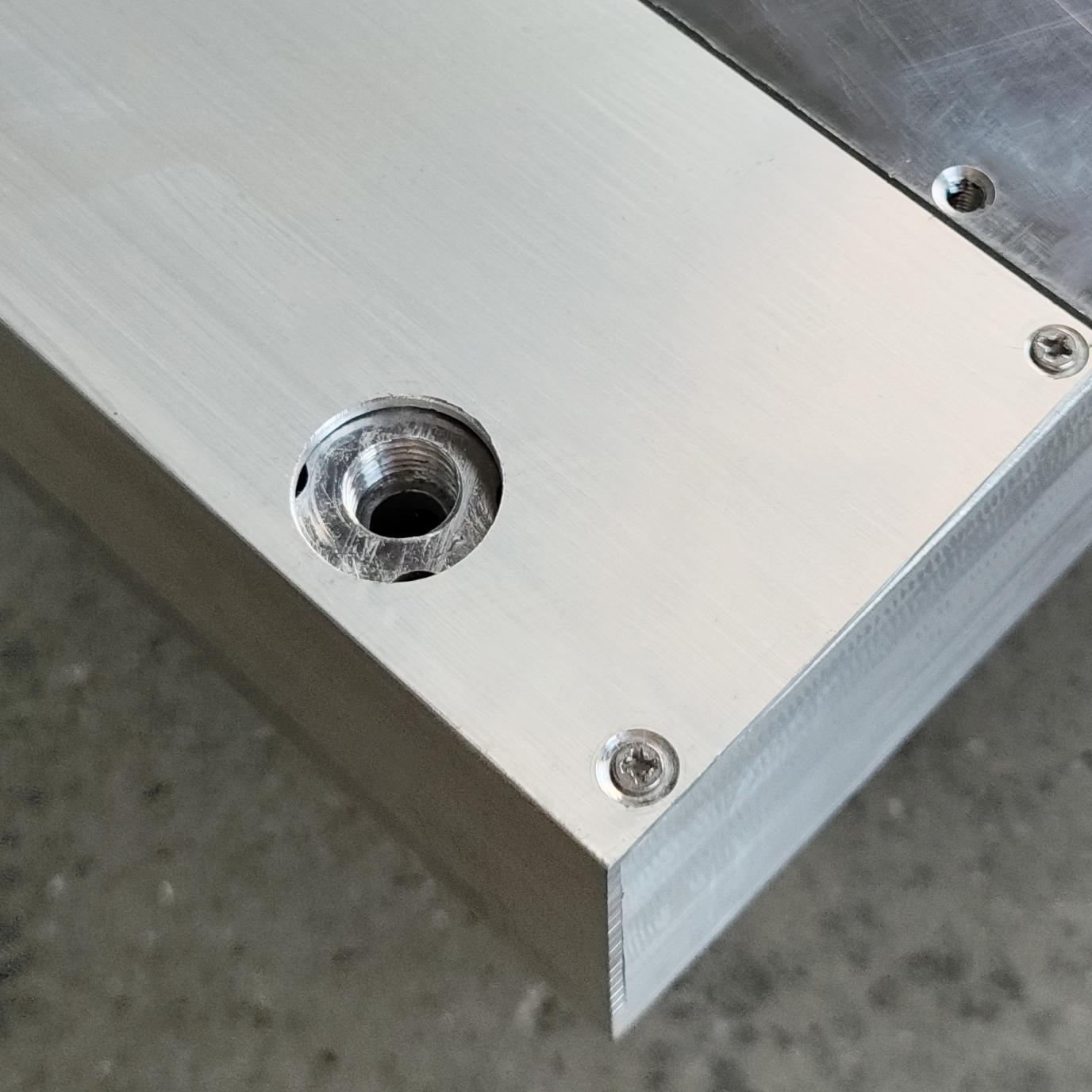

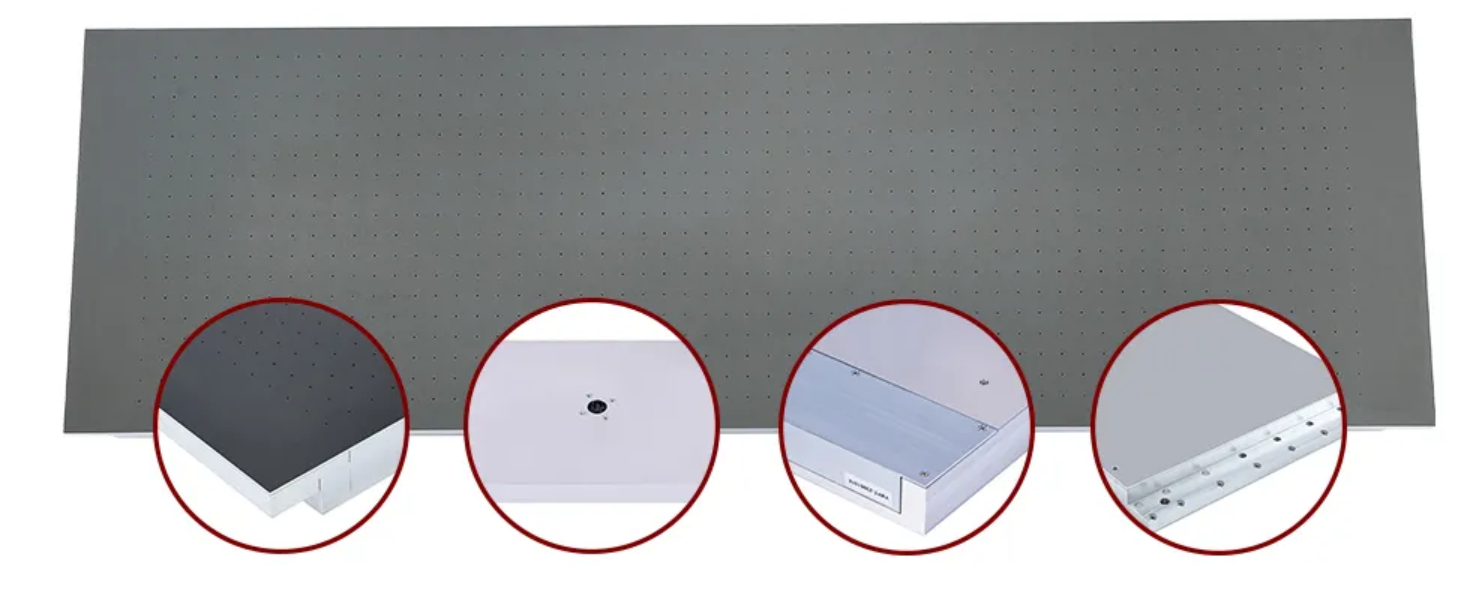

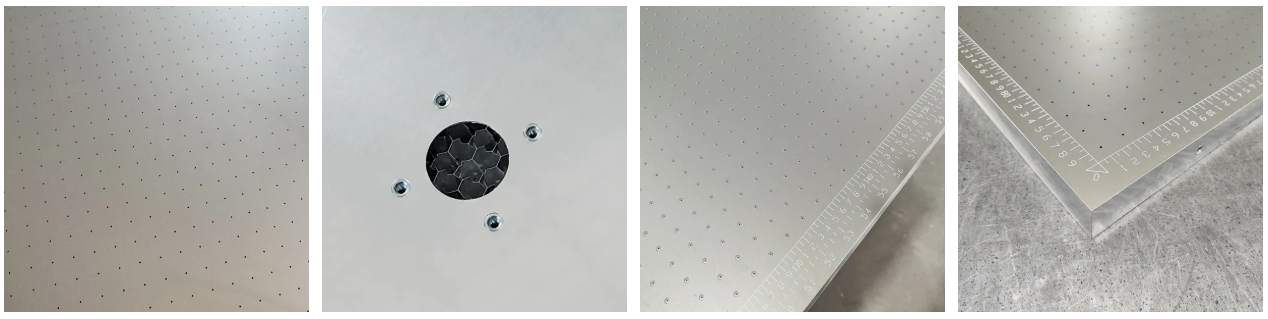

---Details display of Stainless steel cutting machine vacuum honeycomb table---



1. Ultra high precision plane, with large and uniform adsorption force.

2. Stainless steel panel material, high hardness, scratch resistance and wear resistance.

3. The internal honeycomb structure has high structural strength and stability.
