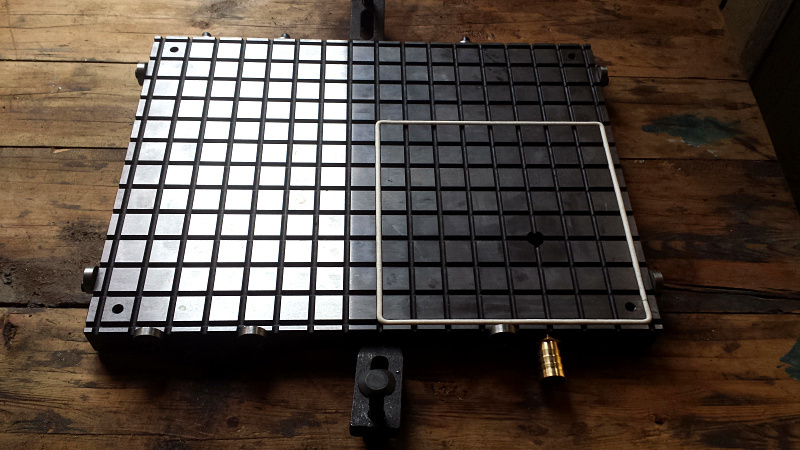

CNC Series Vacuum Table

Custom sizes available to meet specific application requirements；

High-efficiency, stable clamping force with strong, evenly distributed suction；

Machined from solid aluminum plate for high surface flatness；

Lightweight sandwich structure design；

Low weight with high structural strength；

Maximizes airflow efficiency；

Hard anodized surface offers scratch and wear resistance；

Special manufacturing process ensures consistent quality；

Two Configuration Options:



a. Standalone type: Vacuum table includes a vacuum pump.

b. Integrated type: Vacuum table operates using only a positive pressure air source (no vacuum pump required).



Accessories included:

Sealing strips, clamp set, lifting eye, dowel pins, vacuum pump (for standalone type).



Table Surface Details:

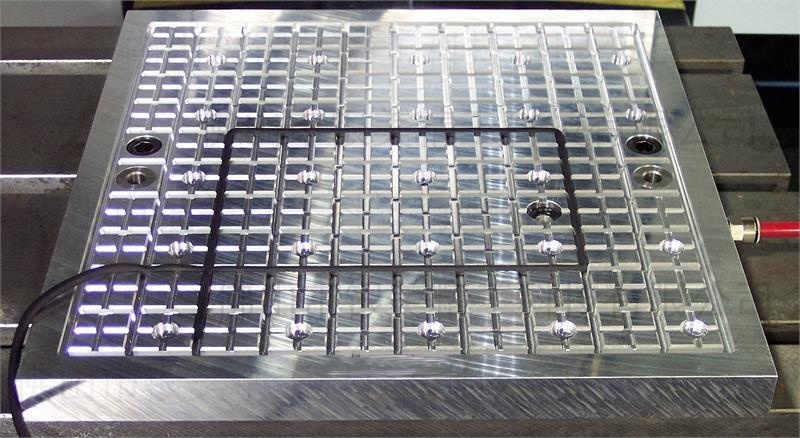

16×16 grid pattern

Blind holes within grid squares, which can be tapped if needed

Flatness accuracy: up to 0.02mm

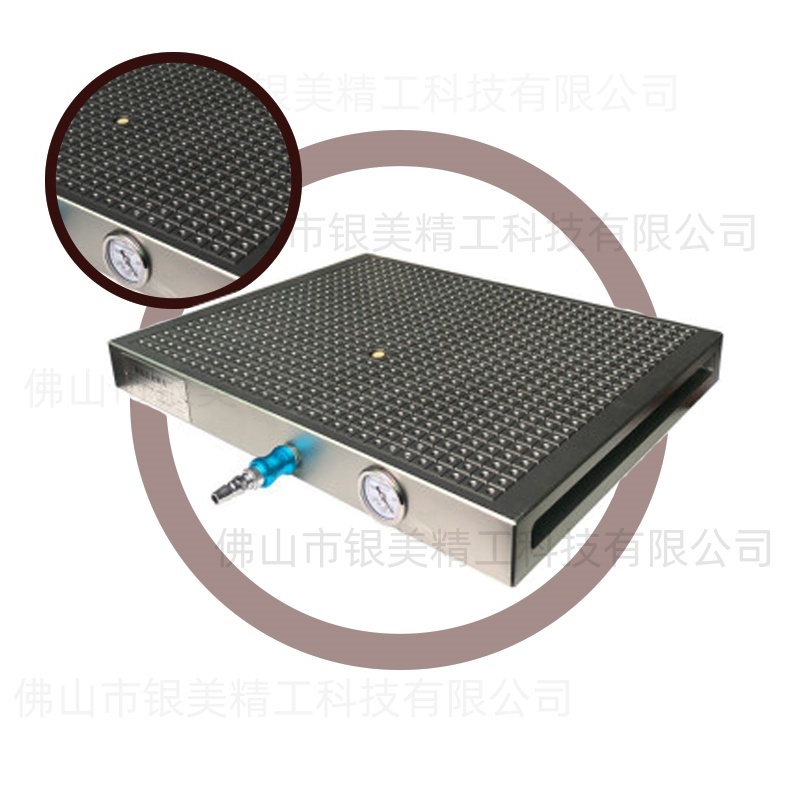

Operational when vacuum gauge shows -70 kPa or below



Features:

Air inlet with slide switch and C-type self-locking connector

Material options: Steel / Aluminum alloy (Black/Blue finish)



Standard Size Offerings (Custom sizes available):



| No. | Dimensions (L×W×H, mm) |

|-----|-------------------------|

| 1   | 300 × 300 × 55          |

| 2   | 300 × 400 × 55          |

| 3   | 300 × 500 × 55          |

| 4   | 300 × 600 × 55          |

| 5   | 400 × 400 × 55          |

| 6   | 400 × 500 × 55          |

| 7   | 400 × 600 × 55          |

| 8   | 400 × 800 × 55          |

| 9   | 400 × 1000 × 55         |

| 10  | 500 × 500 × 55          |

| 11  | 500 × 600 × 55          |

| 12  | 500 × 800 × 55          |

| 13  | 500 × 1000 × 60         |

| 14  | 600 × 800 × 60          |

| 15  | 600 × 1000 × 60         |

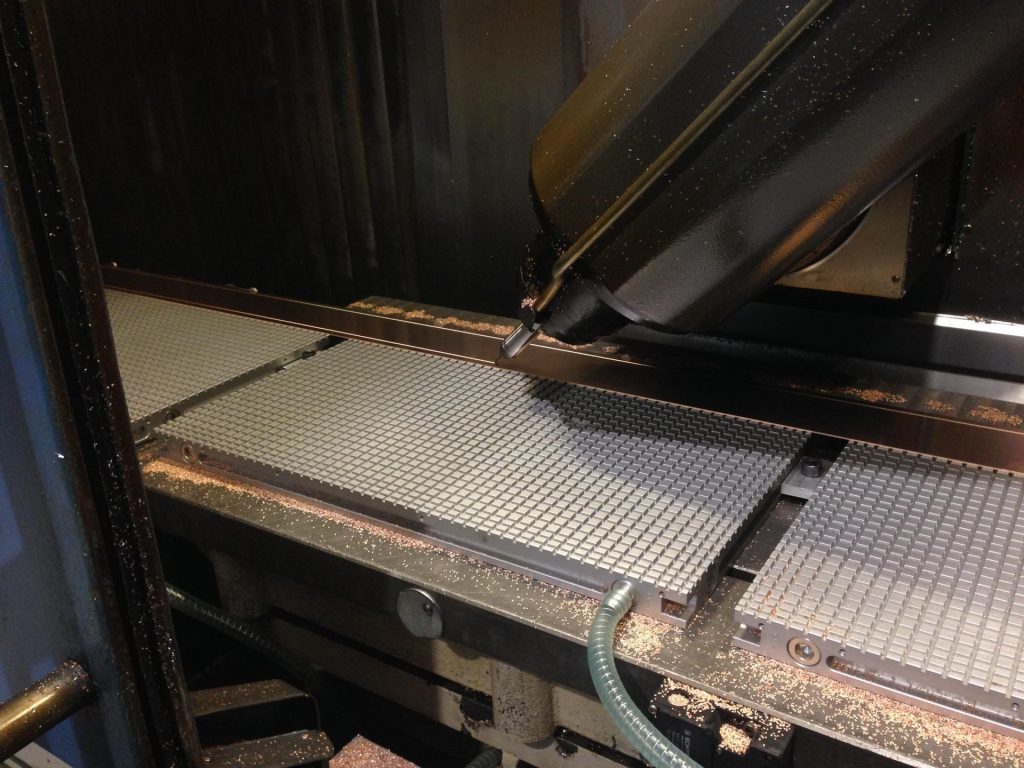

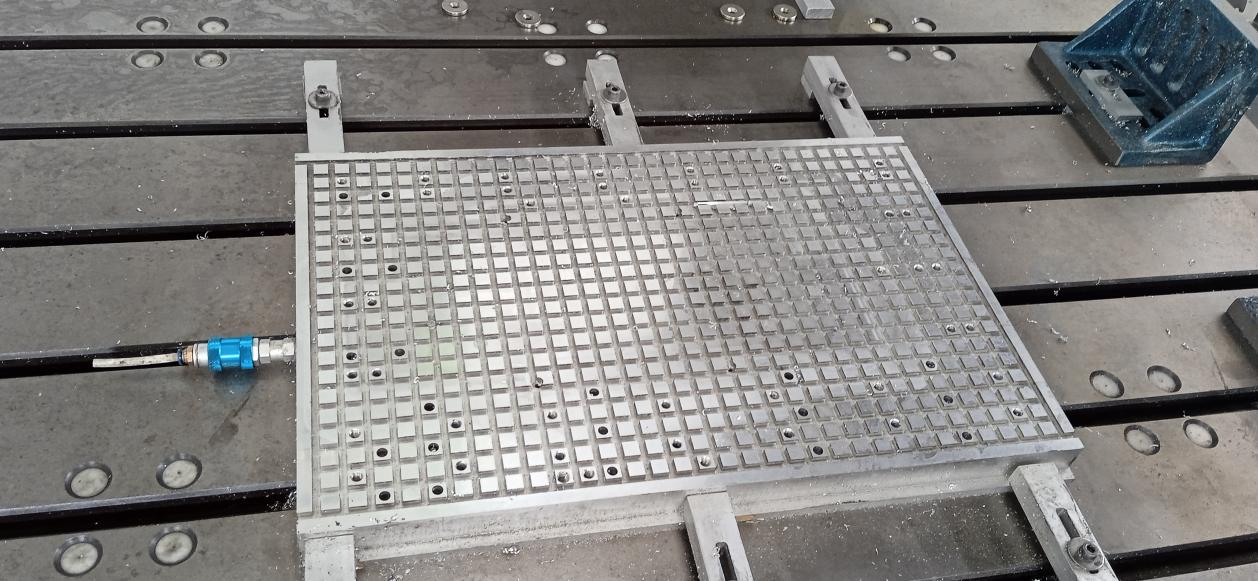

CNC Series Vacuum Application scenarios – 700×400 mm

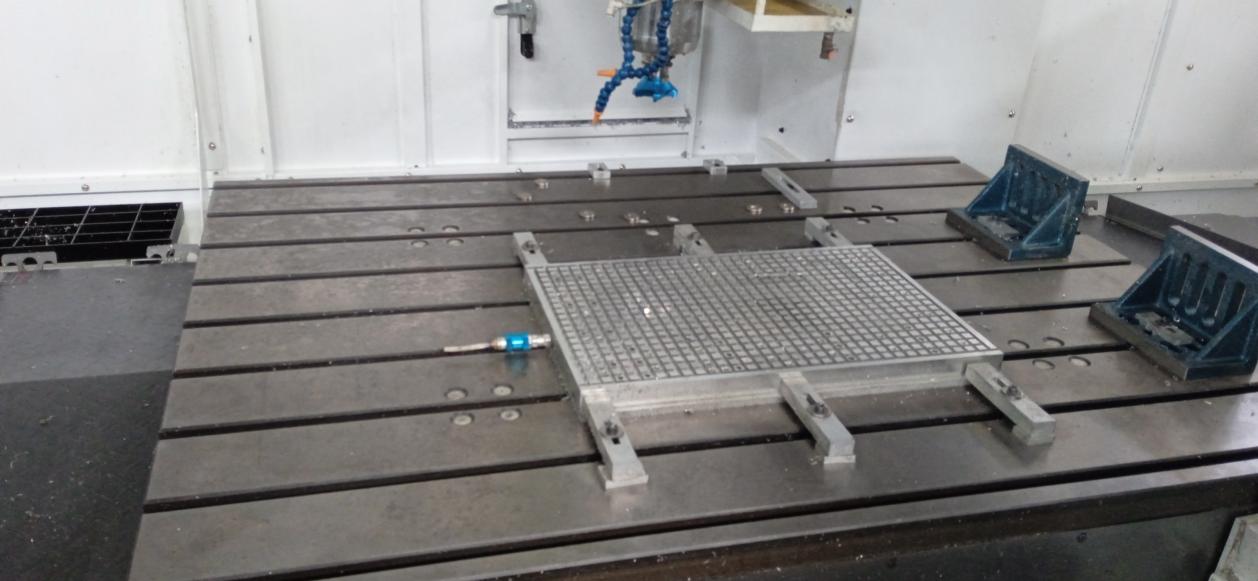

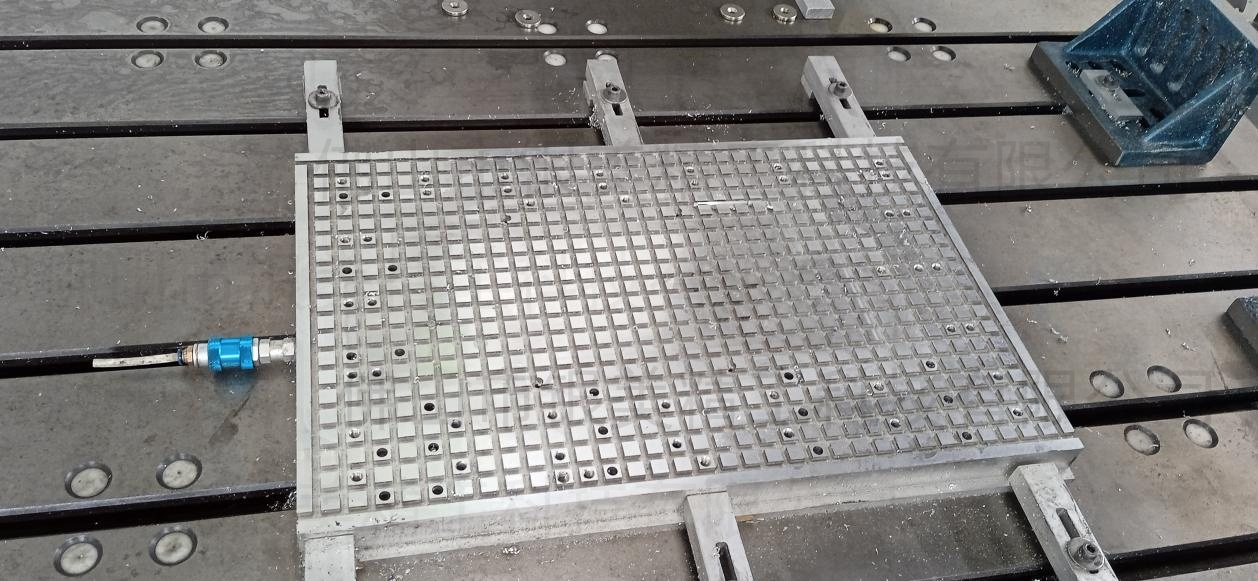

CNC Vacuum Table Application scenarios – 700×400 mm

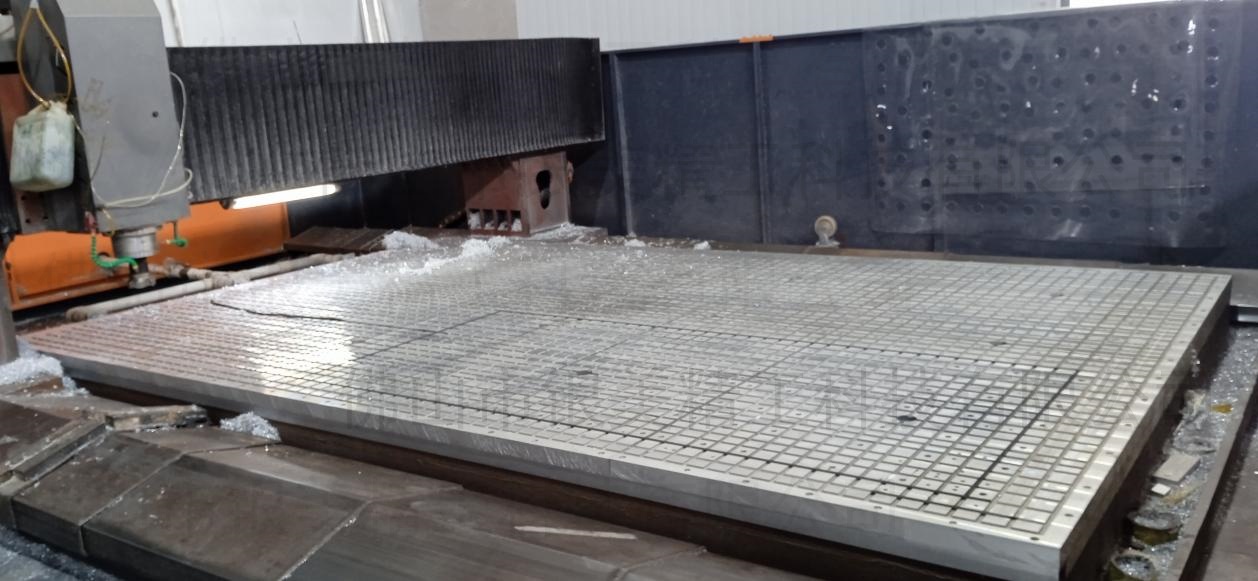

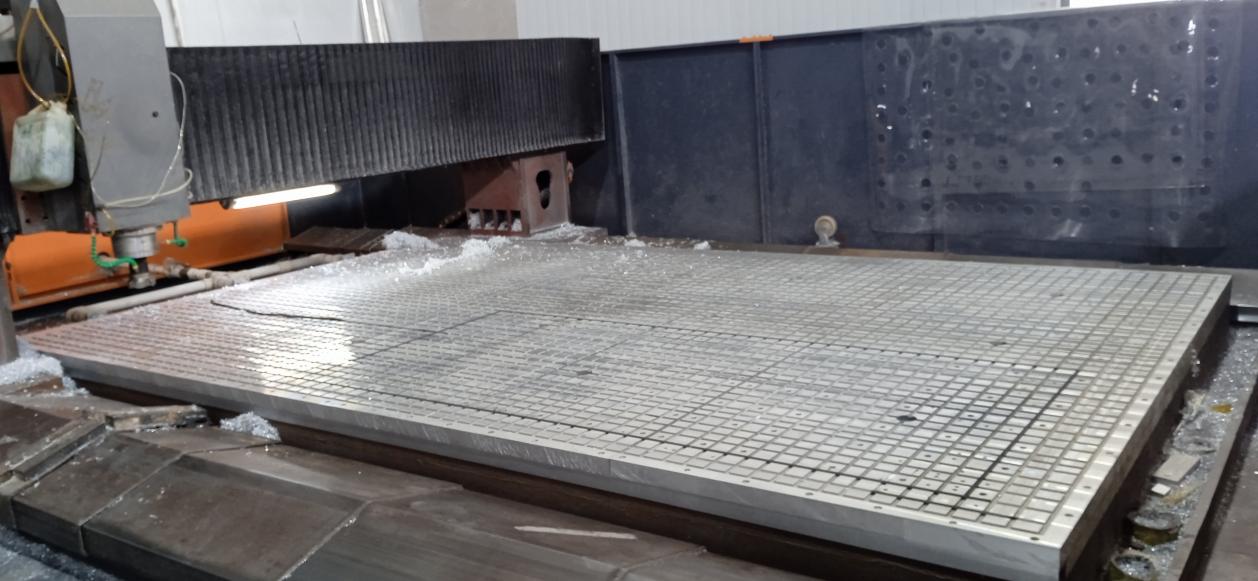

CNC Vacuum Table Application scenarios – 5000×2500 mm





Technical Parameters And Characteristics



SPEC	THICKNESS	PANEL HOLE DIAMETER	PANEL HOLE SPACING	PANEL MATERIAL	INTERFACE MODE
2500*1300*42.5	42.5	0.8	20	Aluminum alloy	flange
SURFACE FINISHING	FLATNESS （MM）	PANEL THICKNESS	BACK THICKNESS	PUMPING APERTURE
Hard oxidation	≦0.10	2.0	2.0	Φ50

Above Technical Specifications Can Be Customized Basing On The Following Date



SPEC	THICKNESS	PANEL HOLE DIAMETER	PANEL HOLE SPACING	PARTITION	INTERFACE MODE
Customized	25	0.8	10		flange
	35.5	1.0	20	Customized	Screw
	42.5	1.5	30
MAX:4000*2100	53.5	Customized
	75
SURFACE FINISHING	FLATNESS （MM）	PANEL THICKNESS	BACK THICKNESS	PUMPING APERTURE
Hard oxidation	≦0.10	2.0	2.0	Φ40
Aluminium primary			3.0	Φ50
PVDF			2.0	Customized





CharacteristicsOfYIMIWELLVacuumTable:

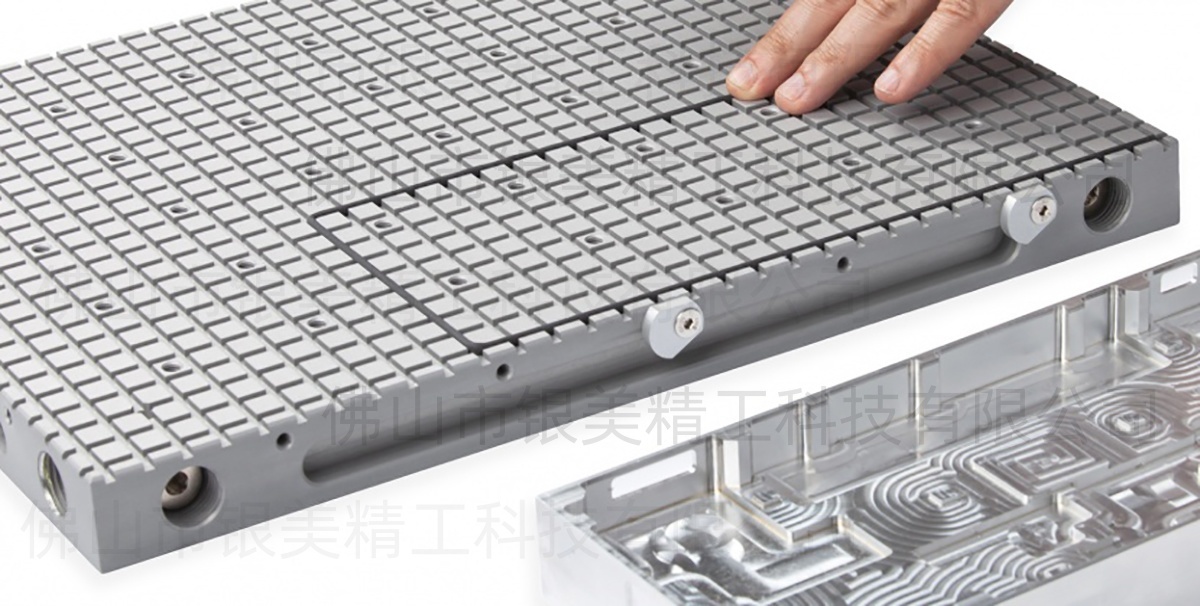

Yimiwell Vacuum Table are made of aluminum alloy in honeycomb structure，

with extremely high flatness of surface. in addition to the advantages of light weight,

high strength, high rigidity, bending resistance and deflection resistance, this

platform also has the advantages of high flatness, small deflection value, large

adsorption force, scratch resistance and wearresistance.



THE DETAILED ADVANTAGES ARE AS FOLLOWS:

1.LARGE SURFACE WITH HIGH FLATNESS

The maximum length and width dimensions of the Yimiwellvacuumtable panel can

reach 4000×2100mm (splicing is available for sizes exceeding this range). It boasts

excellent flatness and deflection performance:

Flatness: Generally controlled within 0.20mm, with the minimum down to 5μm.

Deflection: Less than 0.10mm under a load of 30 kg.



2.LIGHT WEIGHT AND LARGE BEARING CAPACITY

Yimiwellvacuumtable uses aviation-grade aluminum honeycomb structure with all

aluminum alloy integrated molding. Lightweight design ensures >60kg/m² single

point load-bearing without deformation, combining high strength and stability.



3.GREATSUCTIONINWELL-DISTRIBUTED

Yimiwell vacuumtable ensurestheperformanceoftheplatformarenotaffected

andalsomakesthesuctionforcegreatinwell-distributedatanyposition.



4.ANTI-SCRATCHANDWEAR-RESISTANT

The surface of Yimiwell vacuum table can undergo natural anodizing and hard

anodizingtreatments. Among them, hard anodizing providesthe best scratch

andwearresistance,withamaximumsurfacehardnessofuptoHv500.



5.YIMIWELL VACUUM TABLECAN BECUSTOMIZEDBASING

ONCUSTOMER'SDEMAND.
