Screen Printing Adsorption Platform

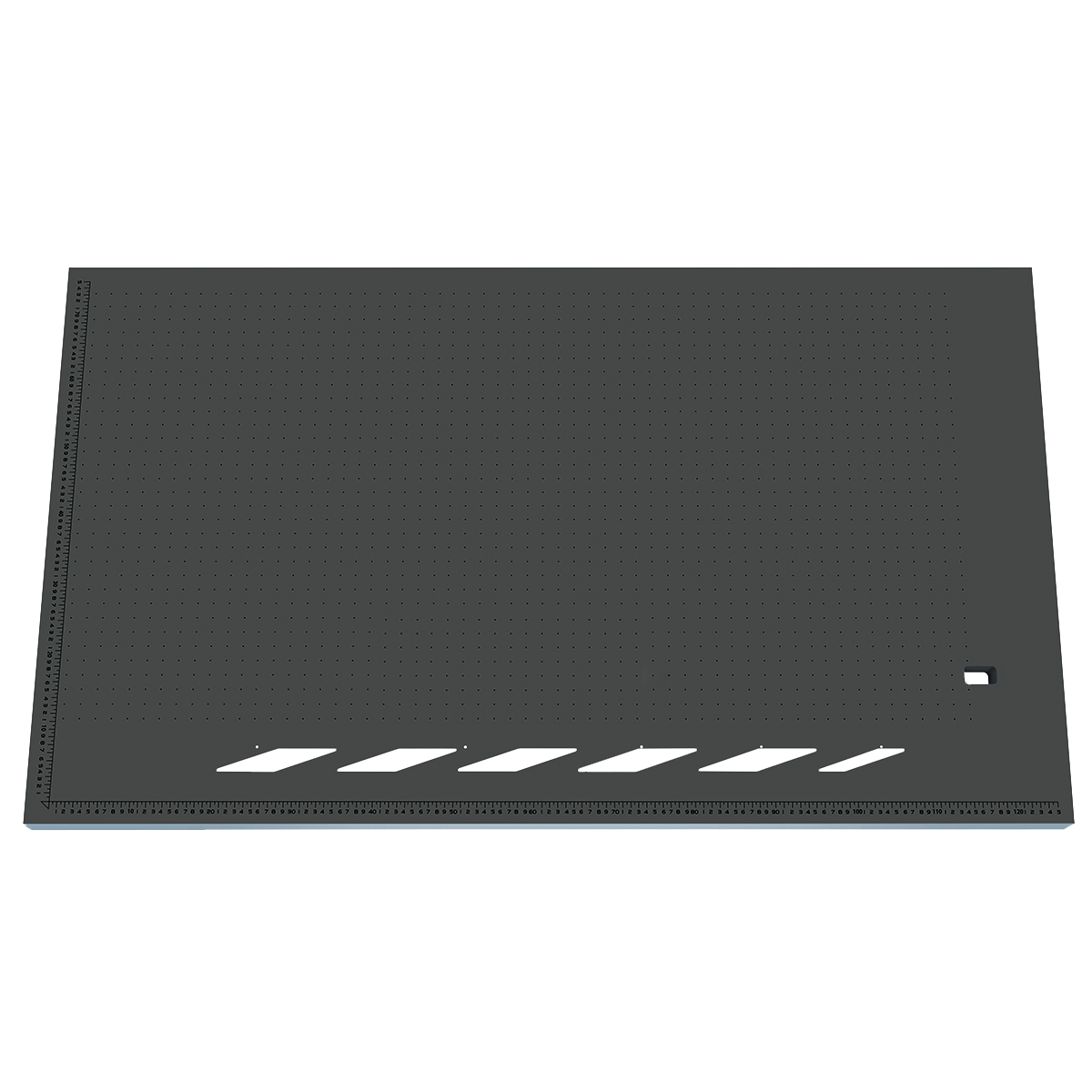

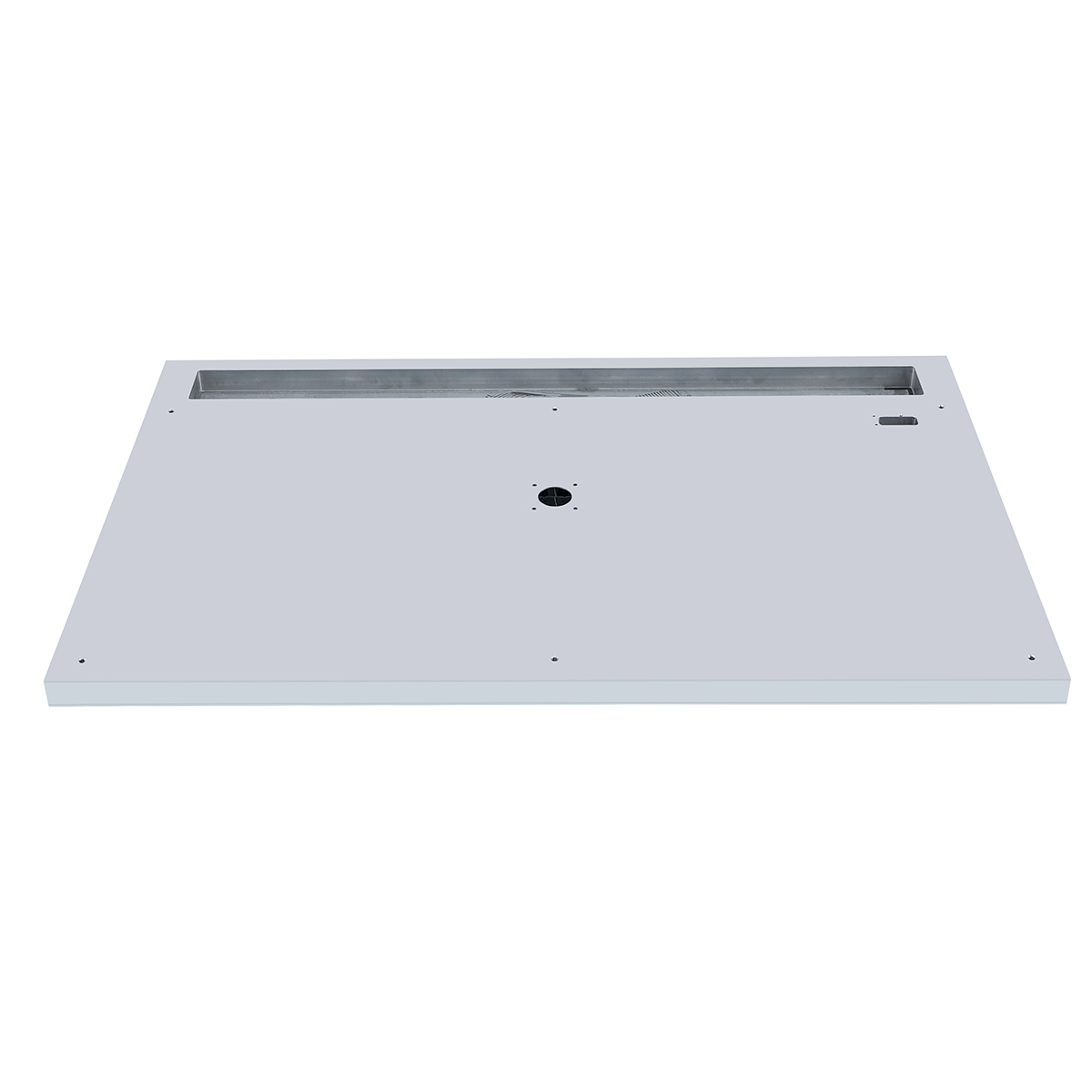

Screen Printing Machine Suction Platform YM-1300*800*43.5 (with Automatic Positioning Slot)
key word:
Screen Printing Machine Series Suction Platform
Classification:
Product details
Screen Printing Machine Suction Platform YM-1000*800*43.5 (with Automatic Positioning Slot) Parameters ：
| Platform Specifications |
Platform Thickness |
Panel Aperture |
Panel Hole Distance |
Panel Material |
Interface Type |
| 1000*800*43.5 |
43.5 |
1.0 |
20 |
Alloy Aluminum |
Flange |
| Surface Treatment |
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation |
0.2 |
3.0 |
2.0 |
Φ50 |
The above parameters can be DIY by customers according to the diagram below
| Platform Specifications |
Platform Thickness |
Panel Aperture |
Panel Hole Distance |
Panel Material |
Interface Type |
| 1000*800*43.5 can be customized |
25 35.5 42.5 53.5 |
1.0 |
15 |
Alloy Aluminum |
Flange |
| 1.5 |
20 |
|
Threaded Port |
||
| 2.0 |
|
|
|
||
| Surface Treatment |
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation |
<0.20 |
2 |
2.0 |
Φ50 Φ40 Φ30 Customizable |
|
| Bright Aluminum |
|
|
3.0 |
|
|
|
|
|
|
|
|
Features of Yinmei Vacuum Suction Platform:
The Yinmei vacuum suction platform has an aluminum honeycomb structure, made of aluminum alloy material, with a highly flat surface. Besides the advantages of aluminum honeycomb panels such as light weight, high strength, high rigidity, bending resistance, and flexural resistance, this platform also features high flatness, low deflection, strong suction, scratch resistance, and wear resistance. Detailed advantages are as follows:
1. Large Surface with High Flatness
The maximum panel size of the Yinmei vacuum suction platform can reach 2100*3950mm (larger sizes can be spliced). It has excellent flatness and deflection, generally controlled within 0.02mm, with a minimum of 0.01mm; deflection under 30kg load is less than 0.01mm.
2. Lightweight with High Load Capacity
The Yinmei vacuum suction platform uses high-quality aluminum honeycomb structure, entirely made of aluminum alloy materials, with a density of about 25-35 kg per square meter. It can bear 30 kg without deformation.
3. Strong and Even Suction
The Yinmei vacuum suction platform is optimally designed to ensure all performance aspects are unaffected while providing strong and even suction at any position on the platform.
4. Scratch and Wear Resistant
The surface of the Yinmei vacuum suction platform can be treated with various processes including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. Among these, hard oxidation offers the best scratch and wear resistance, with surface hardness reaching HV500-700.
5. Customizable
Yinmei Vacuum Suction Platform Can be tailor-made according to customer requirements, whether it is platform size, hole diameter and spacing, suction area, suction port diameter, number of suction ports, interface type, or any zoning, individual suction or no suction, all can be customized.
Application Cases: (Automated Screen Printing Machines, CNC Screen Printing Machines, etc.)
