Yinmei water cycle constant temperature suction table
Water cycle constant temperature vacuum adsorption platform
key word:
Printer series adsorption platform
Water cooled adsorption platform
Classification:
Product details
Flatbed Pringter vacuum platform 2500*1300*35.5 specifications
|
Spec (mm) |
Thickness(mm) |
Section Hole Diamter(mm)
|
Section Hole Spacing(mm) |
Panel material |
Interface mode |
| 2000 * 400 * 42.5 |
42.5 |
1.5
|
20 |
Alloyed aluminum |
flange |
|
Surface finishing
|
Flatness（mm) |
Panel Thickness(mm) |
Back Thickness(mm) |
Pumping Aperture |
|
|
Hard anodizing
|
0.20 or less |
2 |
2 |
Φ 50 |
Above Technical Specifications can be customized basing on the following date.
|
Spec (mm)
|
Thickness(mm) |
Section Hole Diamter(mm) |
Section Hole Spacing(mm) |
Panel material |
Interface mode |
|
2000 * 400 * 42.5 customizable |
25.0 35.5 42.5 53.5 |
1.0 |
15 |
Alloyed aluminum |
flange |
|
1.5 |
20 |
|
screw |
||
|
2.0 |
|
|
|
||
|
Surface finishing |
Flatness（mm) |
Panel Thickness(mm) |
Back Thickness(mm) |
Pumping Aperture |
|
|
Hard oxidation |
0.20 or less |
2.0 |
2.0 |
Φ 50 Φ 40 Φ 30 customizable |
|
|
photoaluminum |
|
|
|
|
|
|
|
|
|
|
|
CHARACTERISTICS OF YINMEI VACUUM PLATFORM

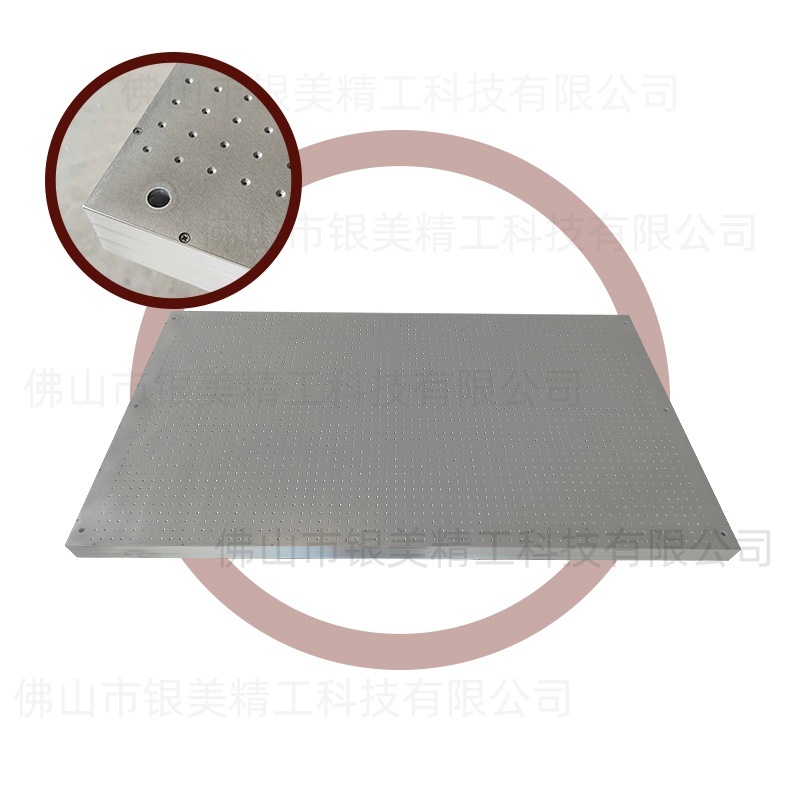

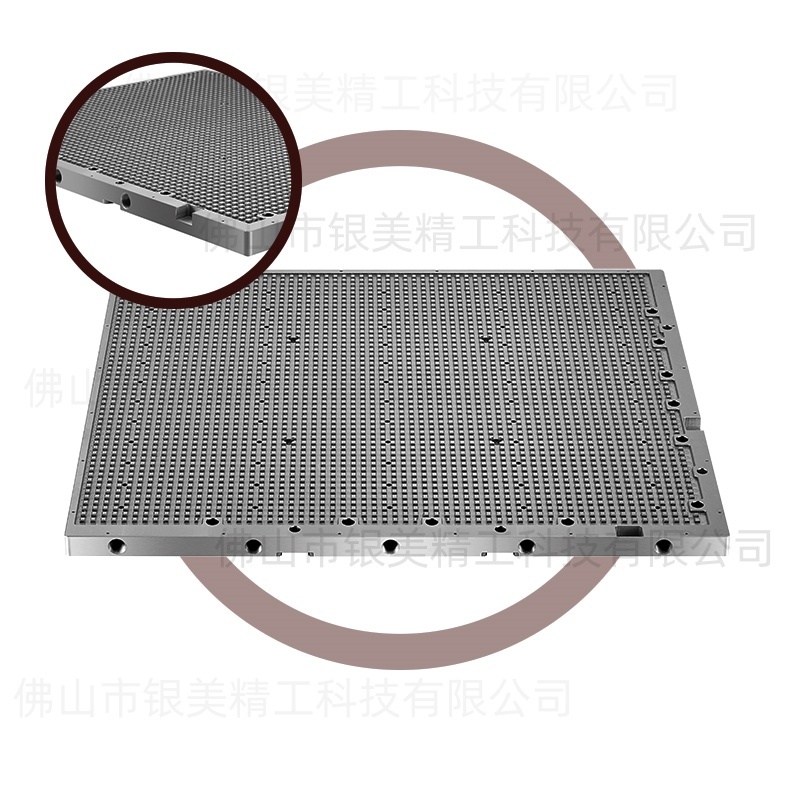

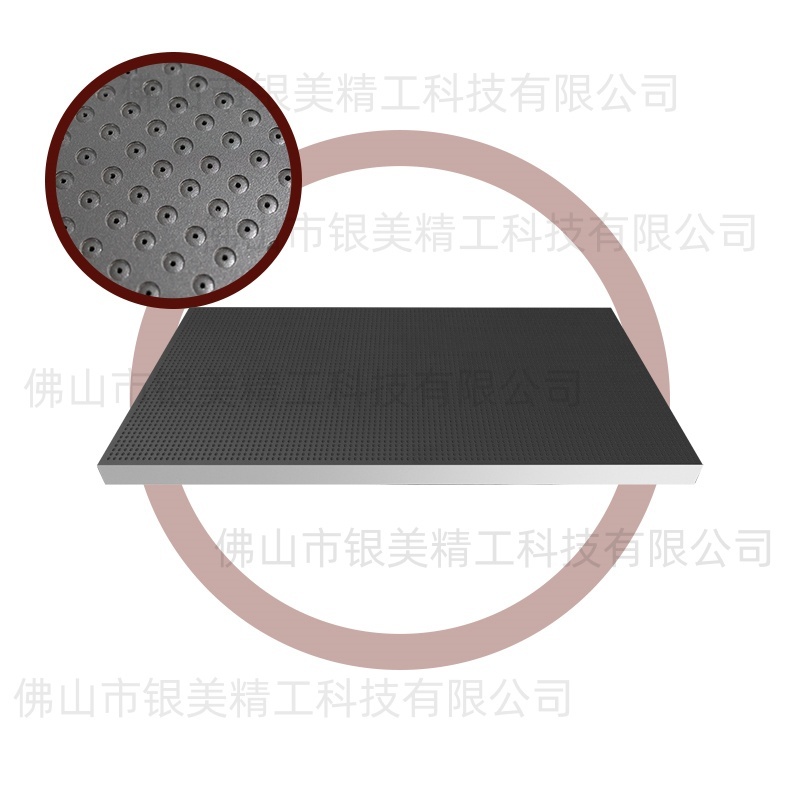

Yinmei vacuum platform are made of aluminum alloy in honeycomb structure, with extremely high flatness of surface.In addition to the advantages of light weight, high strength, high rigidity, bending resistance and deflection resistance, this platform also has the advantages of high flatness, small deflection value, large adsorption force, scratch resistance and wear resistance.
1. Large surface with high flatness
Yinmei Vacuum Platform has a maximum board size of 2100*3950mm(Be spliced when exceeded),with excellent flatness and deflection of 10-20 wires. The deflection value is less than 10 wires under an extra force of 30 kg.
2.Light weight and large bearing capacity
Yinmei using superior quality aluminum honeycomb, all in aluminium material,of which the density per square meter is about 25-35 kg, bearing 30kg without deformation.
3.Great suction in well-distributed
Yinmei ensures the performance of the platform are not affected and also makes the suction force great in well-distributed at any position.
4.Anti-scratch and wear-resistant
Surface finishing of PVDF、Anodizing、Hard anodizing are available, among which hard anodizing has the best scratch and wear resistance,with sureface hardness HV500-700.
5.Yinmei Vacuum Platform can be cuztomized basing on customer’s deman
