Vacuum Lifter

The vacuum lifter sponge suction cup launched by Foshan Yinmei Precision Technology Co., Ltd. stands out in the field of industrial automation with its refined design, convenient operation, lightweight body, and strong suction power. It is also worth mentioning that we offer highly customized services to meet the diverse needs of our customers.


key word:


Classification:


Product details



Yimiwell Vacuum Table
Vacuum Lifter



Key Product Features



1.  Uniform suction force, robust construction.

2.  Custom designs available based on provided drawings.

3.  Enhanced safety with dual protection systems.

4.  Leakage warning and loss of pressure protection.

5.  Lifting capacity range: 25-200 KG.



Application Scenarios:



The Yimiwell Vacuum Table is a flexible vacuum handling tool. It uses a porous sponge and a vacuum generator, which creates negative pressure via compressed air for non-marking and damage-free lifting. It is primarily applied in industrial automation, logistics sorting, and precision manufacturing. Typical uses include handling fragile or irregularly shaped items like glass panels, food packaging bags, electronic device housings, and ceramic products. In automotive manufacturing, it's used for moving body panels; in the medical field for sorting reagent bottles; and in logistics for automated parcel handling.



 Basic Structure:

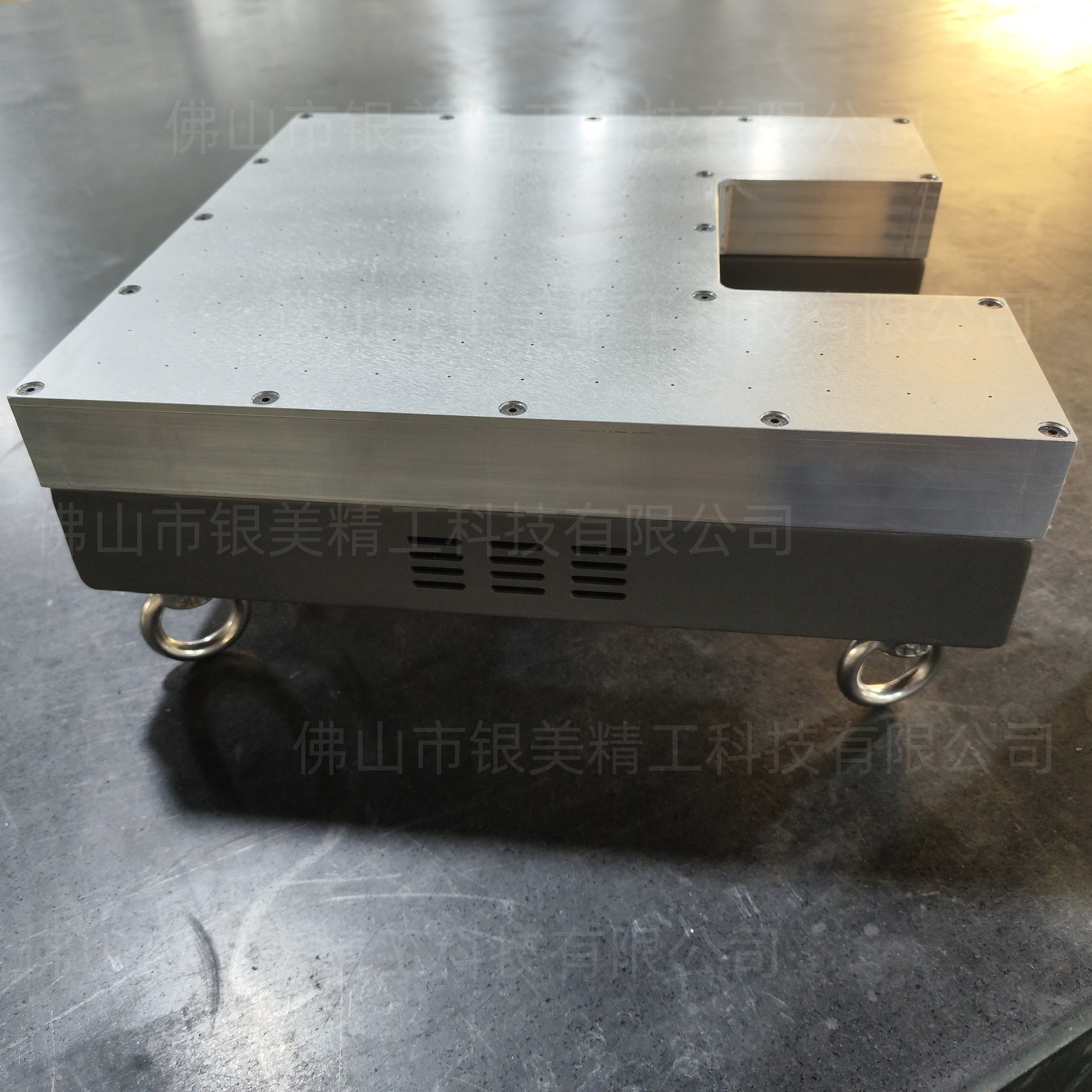

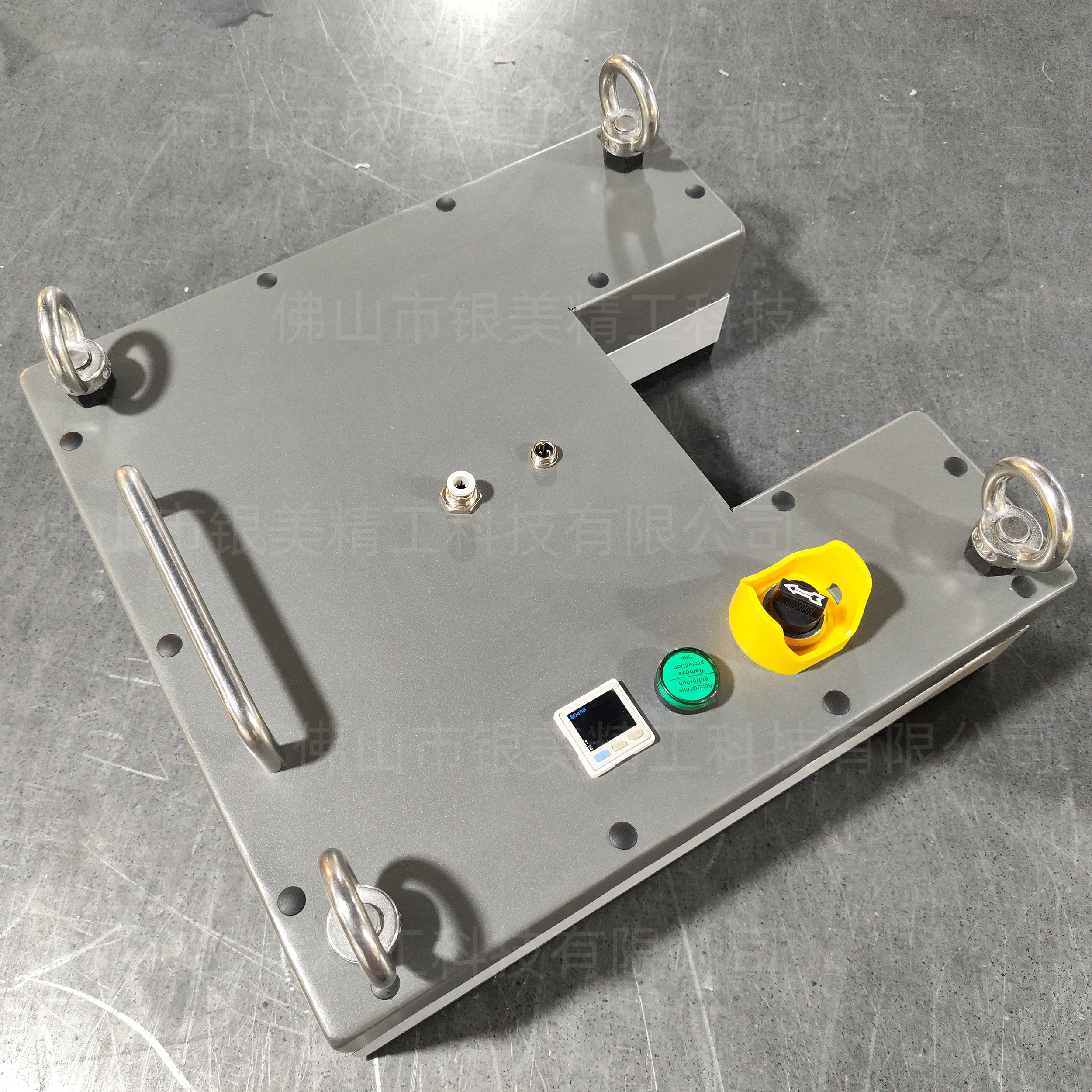

As shown below, the main components of the vacuum table are the suction head, sponge layer, control circuit & pneumatic system, sheet metal housing, and lifting eye.



When the suction knob is activated, the vacuum generator starts. It reaches the required negative pressure within 1-3 seconds, indicated by a green light, signaling the load is ready to be lifted.



 Safety Features:



Safety is enhanced with dual protection, including leakage warning and loss of pressure protection.



This 5th-generation vacuum table includes added safety components like a buzzer and one-way valve.



1.  **Leakage Warning:** During operation, if minor leakage occurs, the load will not fall immediately. If negative pressure drops below the set threshold, a buzzer alarm activates, alerting the operator to lower the load promptly.

2.  **Pressure Loss Protection:** The suction head maintains pressure temporarily. In case of compressor shutdown or sudden hose breakage, negative pressure is not lost instantly, preventing immediate load drop. The buzzer will alarm, prompting the operator to lower the load quickly.



Diagram Overview:

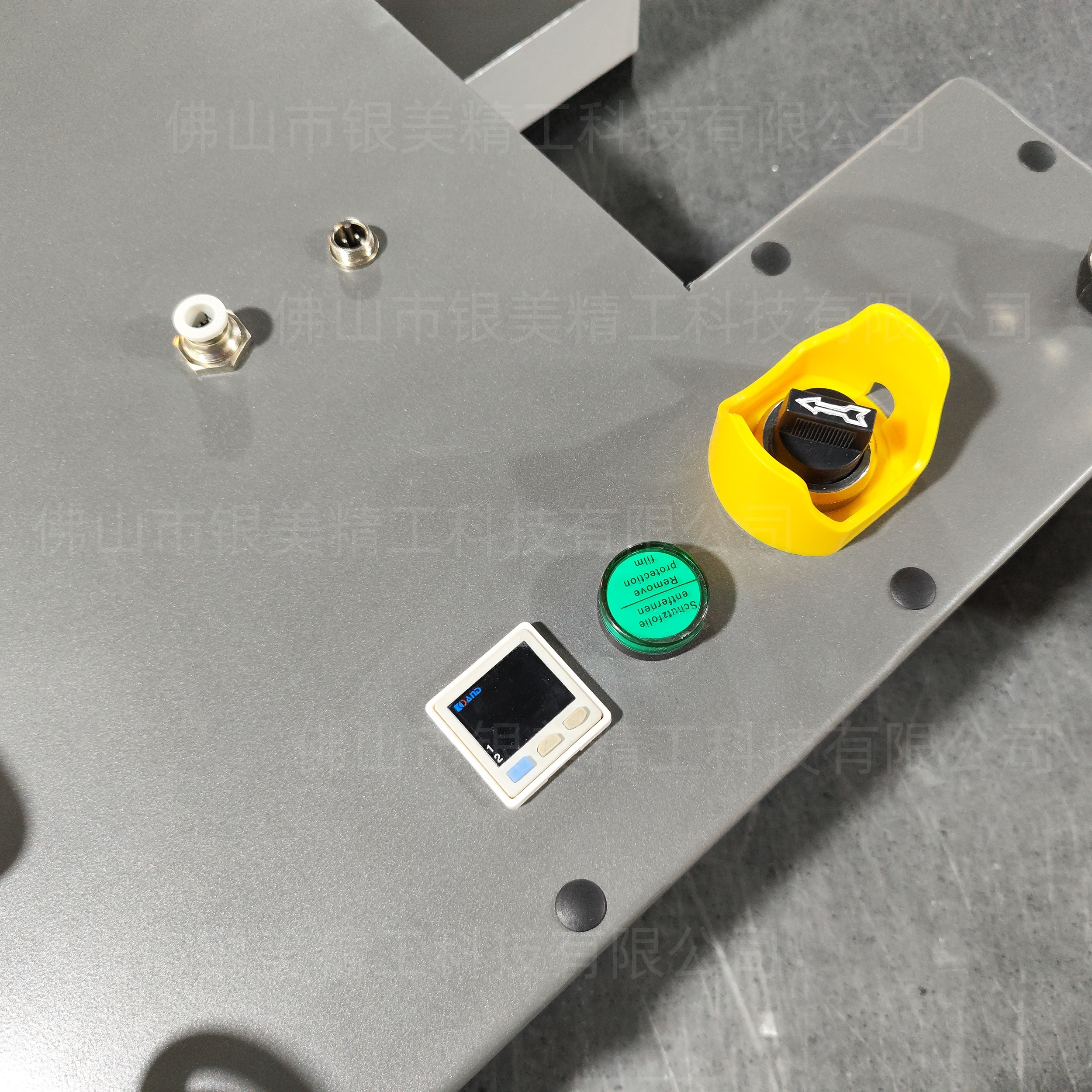

  1.  **Industrial Pneumatic Control System:** Features an anti-misoperation knob switch with a protective cover. Easy to turn.

   2.  **Intelligent Vacuum Monitoring System:** Utilizes a digital sensor and a tri-color LED indicator for real-time vacuum level feedback.

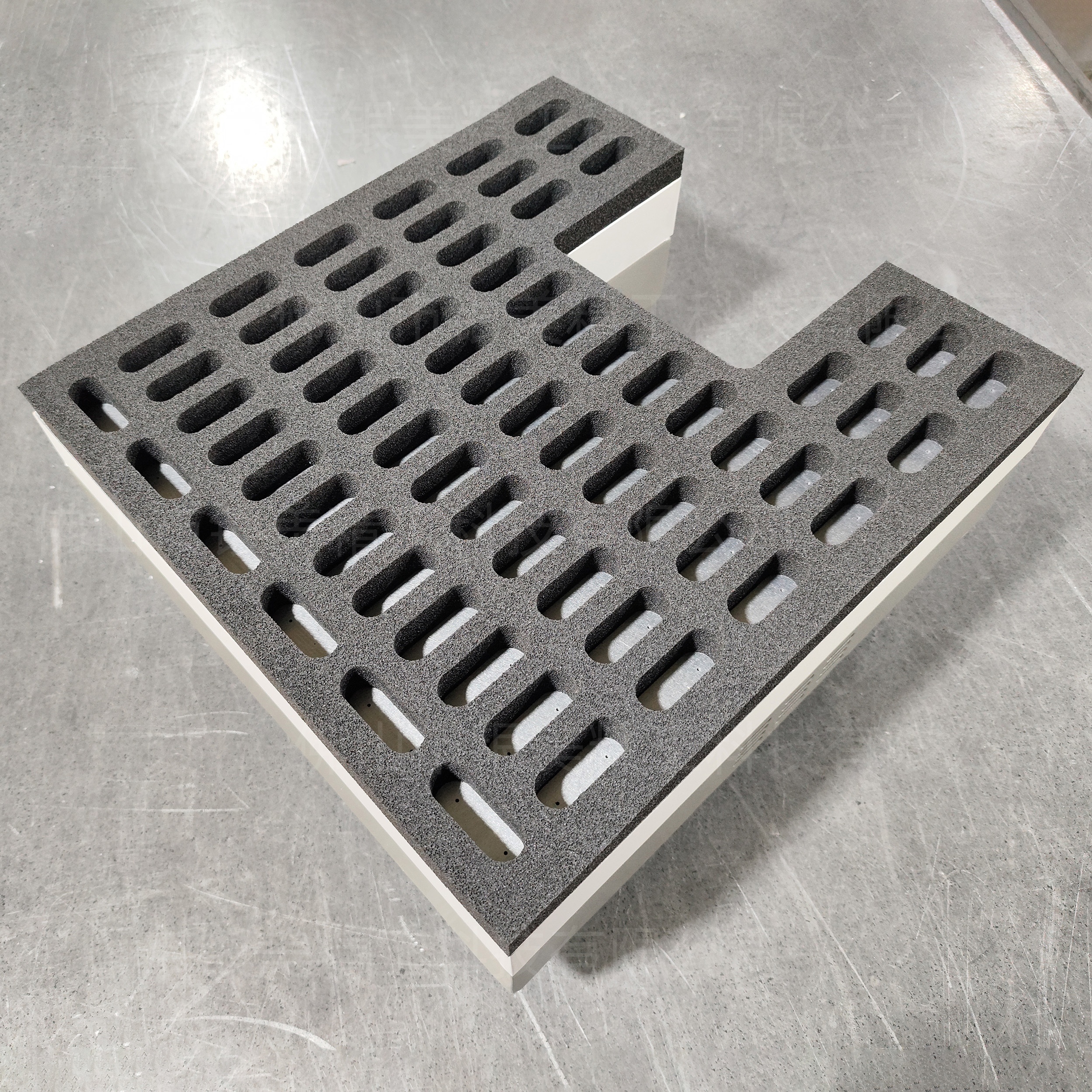

  1.  **Custom Thick Sponge Pad & Textured Housing:** Durable, scratch-resistant, and wear-resistant.

   4.  **Upgraded Air Extraction Structure:** Enables fast adsorption, increased suction force, and higher load capacity.
