Digital Printing Machine Suction Table (Grid Slot)

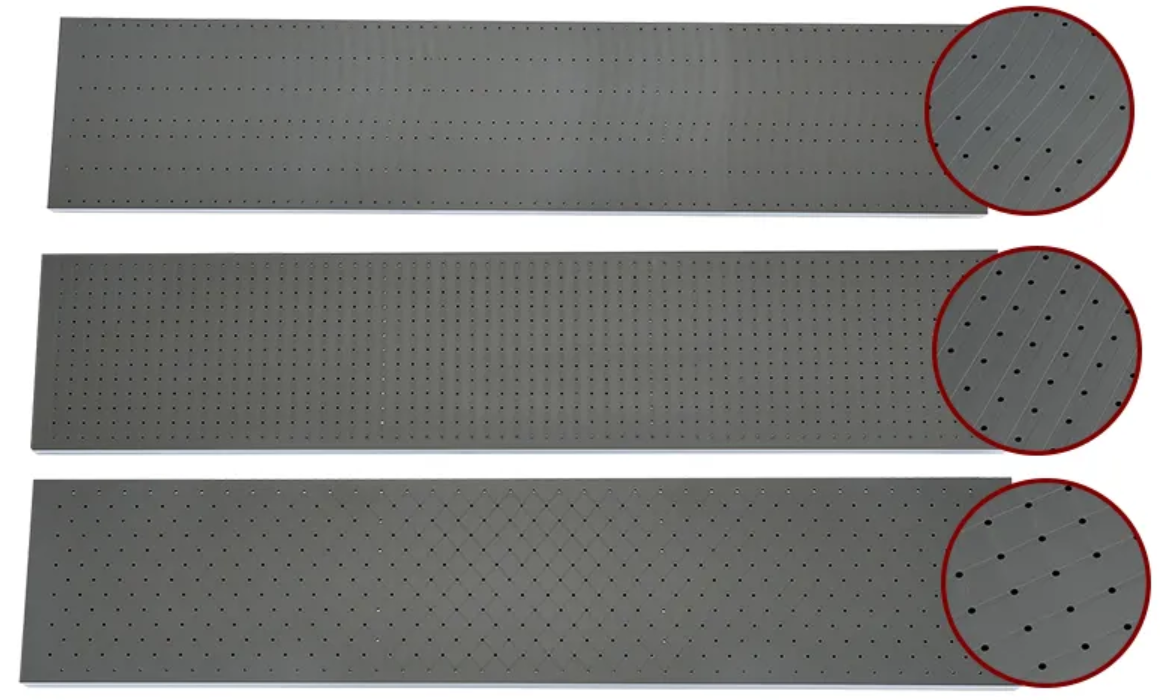

Panel grooving vacuum adsorption platform 3350*350*43.5 (S groove, vertical groove, mesh groove)
key word:
Printer Series Adsorption Platform
Classification:
Product details
Digital Printing Machine Suction Table (Grid Slot)
Digital Printing Machine Suction Table (S Slot)
Digital Printing Machine Suction Table (Vertical Slot)
Panel Grooved Vacuum Suction Platform 3350*350*43.5 Parameters
| Yinmei Suction Table Specifications |
Yinmei Suction Table Thickness | Panel Aperture
|
Panel Hole Spacing |
Panel Material |
Interface Type |
| 3350*350*43.5 | 43.5 | 2.0
|
20 |
Aluminum Alloy |
Flange |
| Surface Treatment
|
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation
|
≤0.20 | 3.0 |
2.0 |
Φ50 |
Customers can customize the above parameters according to the diagram below DIY
| Yinmei Suction Table Specifications
|
Yinmei Suction Table Thickness | Panel Aperture |
Panel Hole Spacing |
Panel Material |
Interface Type |
| 3350*350*43.5 Customizable |
25.0 35.5 42.5 53.5 |
1.0 |
15 |
Aluminum Alloy |
Flange |
| 1.5 |
20 |
|
Threaded Port |
||
| 2.0 |
|
|
|
||
| Surface Treatment |
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation |
≤0.20 |
2.0 |
2.0 |
Φ50 Φ40 Φ30 Customizable |
|
| Bright Aluminum |
|
|
|
|
|
|
|
|
|
|
|
Features of Yinmei Precision Vacuum Suction Platform:
Yinmei Precision Vacuum Suction Platform features an aluminum honeycomb structure made of aluminum alloy material with a highly flat surface. Besides the advantages of aluminum honeycomb panels such as light weight, high strength, great rigidity, bending resistance, and flexural resistance, this platform also offers high flatness, low deflection, strong suction, and scratch and wear resistance. Detailed advantages are as follows:
1. Large Surface with High Flatness
The surface size of Yinmei Precision Vacuum Suction Platform can reach 2100*3950mm (larger sizes can be spliced). Flatness is generally controlled within 0.2mm, and deflection under a 30kg load is less than 0.1mm.
2. Lightweight with High Load Capacity
Yinmei Precision Vacuum Suction Platform uses an aluminum honeycomb structure made entirely of aluminum alloy materials, with a density of about 25-35kg per square meter. It can bear 30kg without deformation.
3. Strong and Even Suction
The platform is optimized to ensure all performance aspects are maintained while providing strong and even suction at any position on the platform.
4. Scratch and Wear Resistant
The platform surface can be treated with various processes including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. The hard oxidation process achieves a surface hardness of HV500-700.
5. Customizable
Yinmei Precision Vacuum Suction Platform can be custom-made according to customer requirements, including platform size, hole diameter and spacing, suction area, suction port diameter, number of suction ports, interface type, and any zoning for individual or no suction.
Application Cases: (Digital Printing Machines, Automation Equipment, etc.)
