Cutting Machine Suction Platform

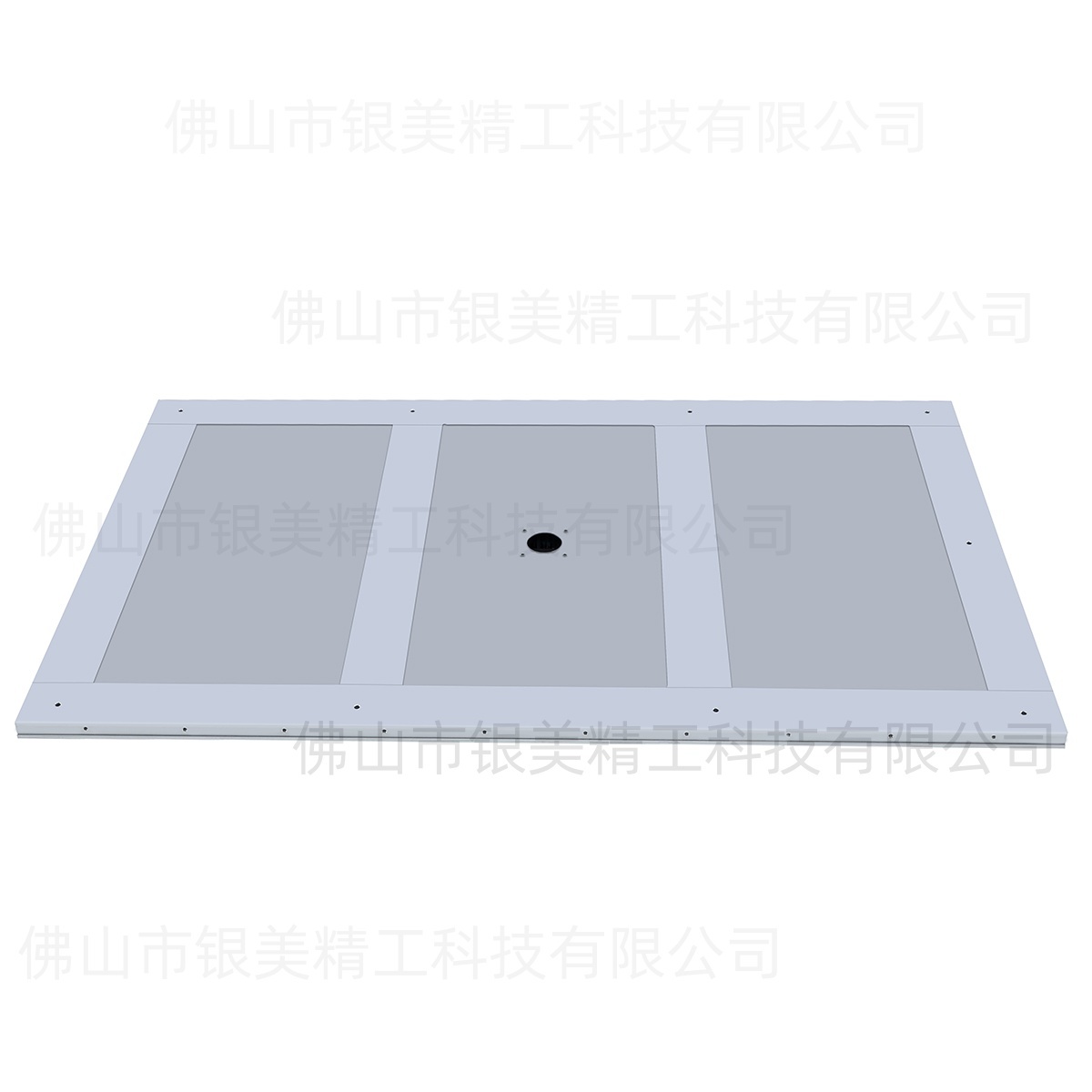

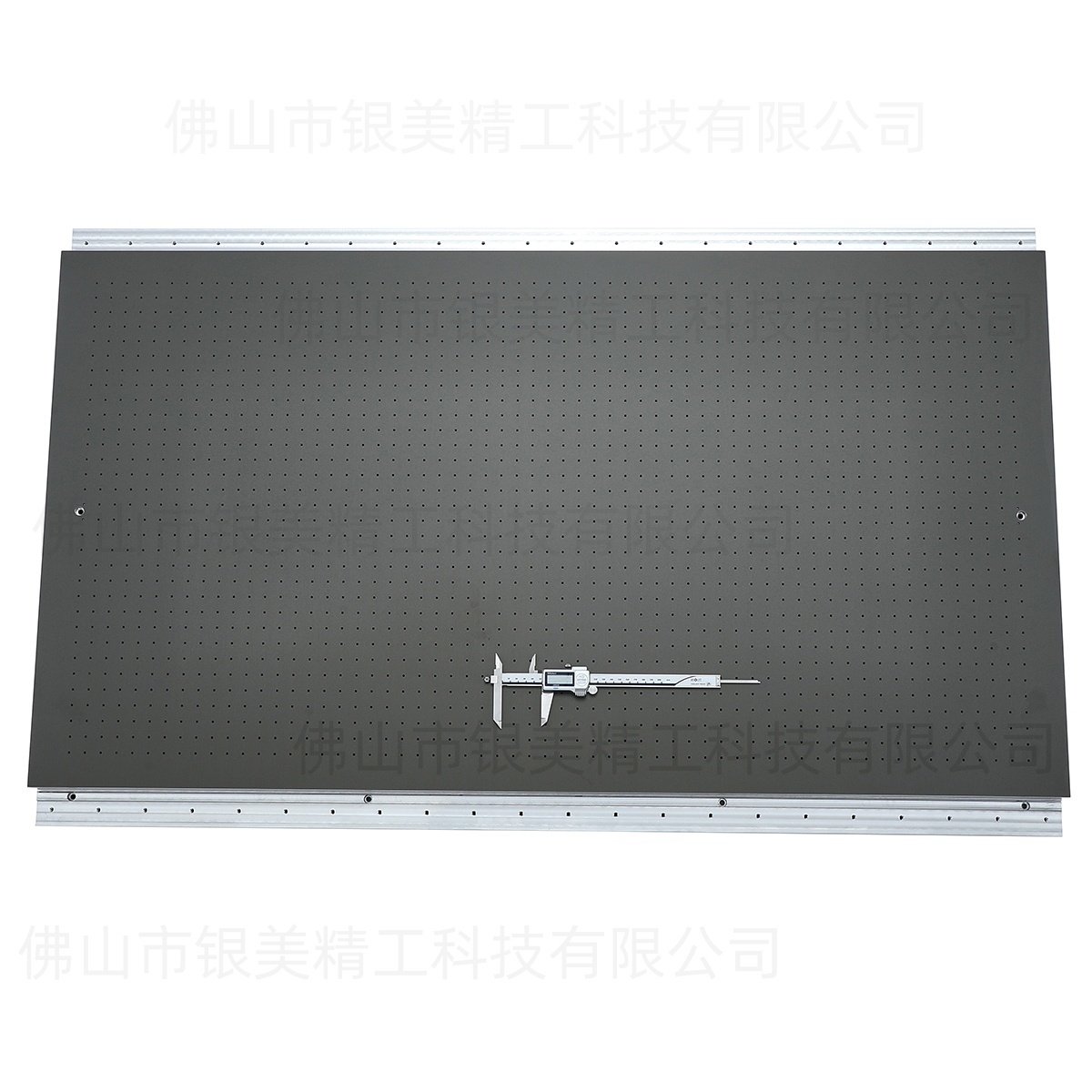

Cutting machine adsorption platform 1300*1000*66.5 (front guide rail - profile section opening sealing)
key word:
Cutting Machine Series Adsorption Platform
Classification:
Product details
Parameters of the front guide rail for the cutting machine suction platform 1300*1000*66.5 are as follows:
| Yinmei Suction Table Specification |
Yinmei Suction Table Thickness | Panel Aperture
|
Panel Hole Spacing |
Panel Material |
Interface Type |
| 1300*1000*66.5 | 66.5 | 2.0
|
20 |
Alloy Aluminum |
Flange |
| Surface Treatment
|
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation
|
≤0.20 | 2.0 |
2.0 |
Φ50 |
Customers can customize the above parameters according to the diagram below DIY
| Yinmei Suction Table Specification
|
Yinmei Suction Table Thickness | Panel Aperture |
Panel Hole Spacing |
Panel Material |
Interface Type |
| 1300*1000*66.5 Customizable |
25.0 35.5 42.5 53.5 |
1.0 |
15 |
Alloy Aluminum |
Flange |
| 1.5 |
20 |
|
Threaded Port |
||
| 2.0 |
|
|
|
||
| Surface Treatment |
Flatness (MM) |
Panel Thickness |
Base Plate Thickness |
Suction Port Diameter |
|
| Hard Oxidation |
≤0.20 |
2.0 |
2.0 |
Φ50 Φ40 Φ30 Customizable |
|
| Bright Aluminum |
|
|
|
|
|
|
|
|
|
|
|
Features of Yinmei Precision Vacuum Suction Platform:

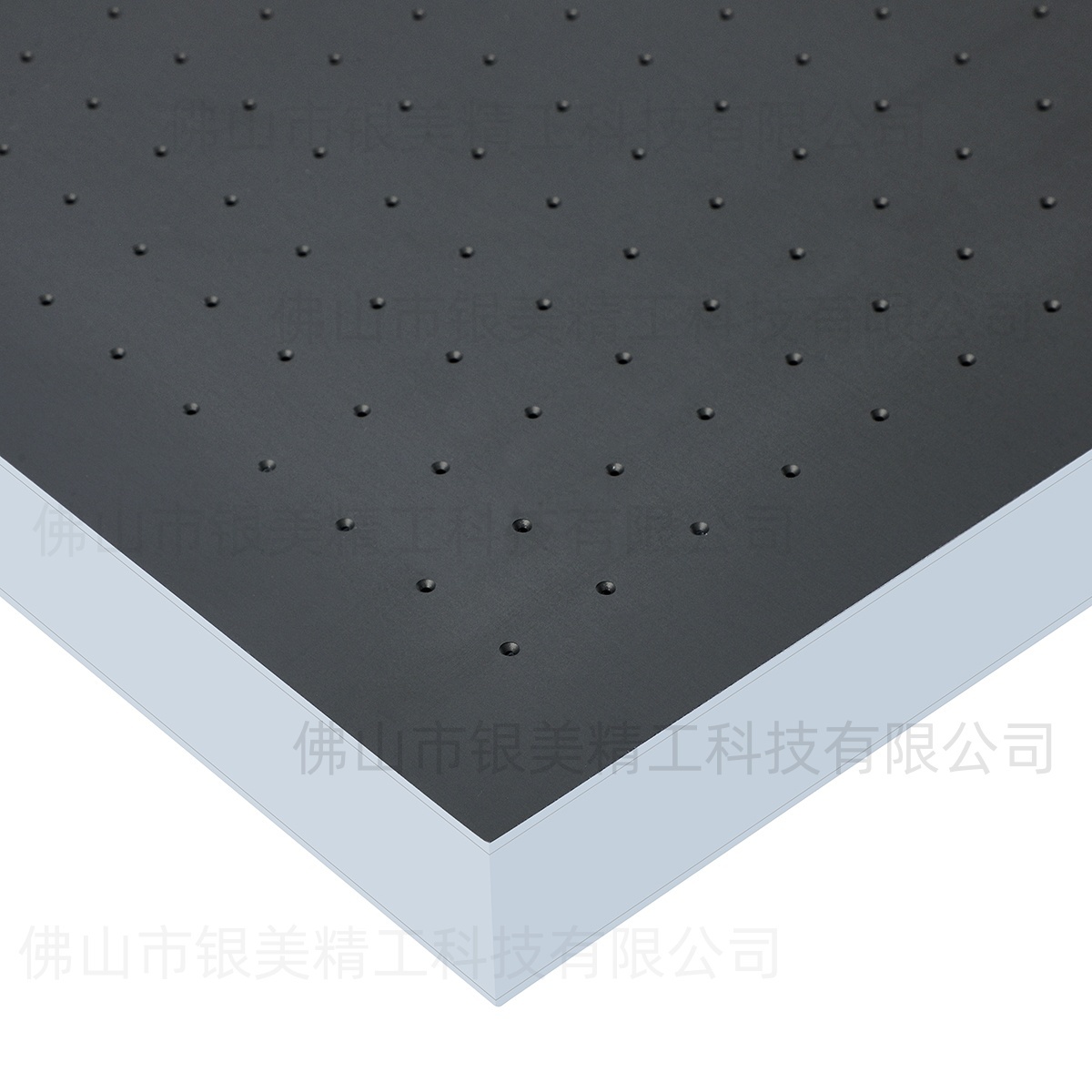

The Yinmei Precision Vacuum Suction Platform features an aluminum honeycomb structure made from aluminum alloy material, with a highly flat surface. Besides the advantages of aluminum honeycomb panels such as light weight, high strength, great rigidity, resistance to bending and deflection, it also offers high flatness, low deflection, strong suction force, and scratch and wear resistance. Detailed advantages are as follows:
1. Large surface with high flatness
The maximum panel size of the Yinmei Precision Vacuum Suction Platform can reach 2100*3950mm (larger sizes can be spliced). It has excellent flatness and deflection, generally controlled within 0.2mm, with a minimum of 0.1mm; deflection under 30kg load is less than 0.1mm.
2. Lightweight with high load capacity
The Yinmei Precision Vacuum Suction Platform uses high-quality aluminum honeycomb structure, entirely made of aluminum alloy, with a density of about 25-35 kg per square meter. It can bear 30 kg without deformation.
3. Strong and uniform suction
The Yinmei Precision Vacuum Suction Platform is optimally designed to ensure all performance aspects are maintained while providing strong and uniform suction at any position on the platform.
4. Scratch and wear resistant
The surface of the Yinmei Precision Vacuum Suction Platform can be treated with various processes, including fluorocarbon, PVDF powder coating, anodizing, and hard oxidation. Among these, hard oxidation offers the best scratch and wear resistance, with surface hardness reaching HV500-700.
5. Customizable for customers
The Yinmei Precision Vacuum Suction Platform can be tailor-made according to customer requirements, including platform size, hole diameter and spacing, suction area, suction port diameter, number of suction ports, interface type, and any zoning for suction or non-suction.
Application cases: (digital cutting machines, CNC cutting machines, etc.)
