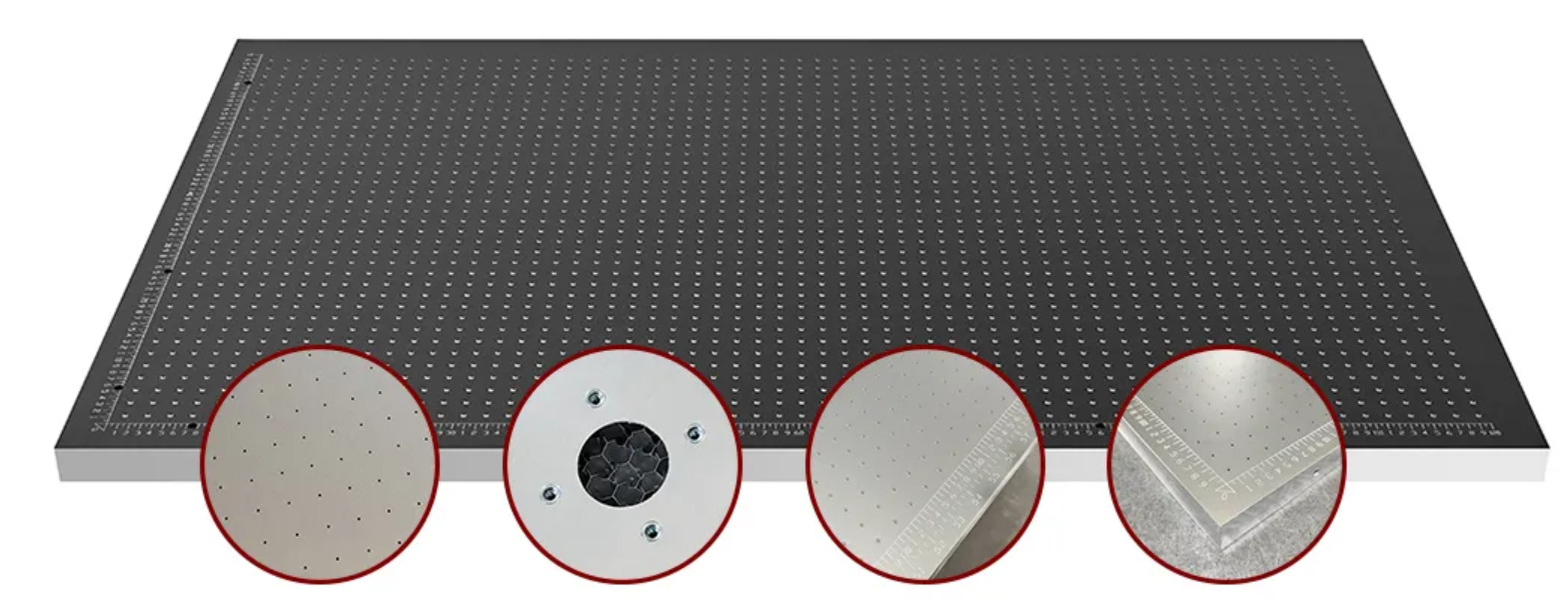

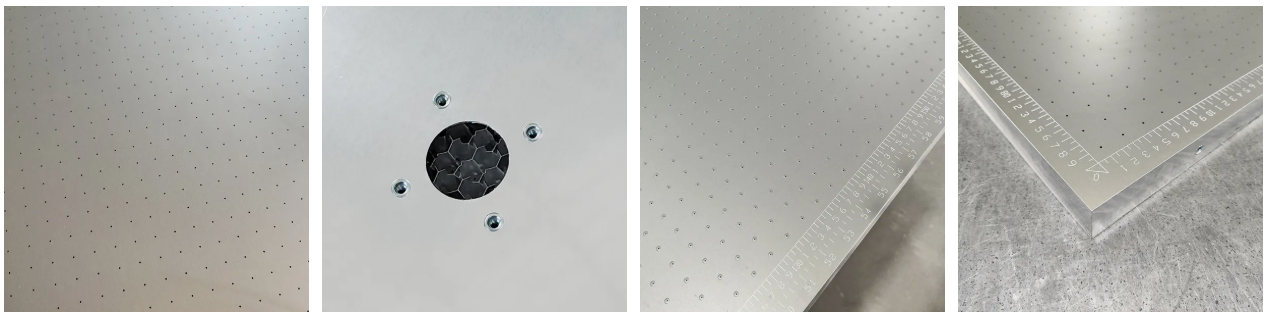

Flatbed Printer Suction Platform

UV flatbed printer vacuum adsorption platform


key word:

Flatbed printer vacuum suction platform

Yinmei Precision Engineering vacuum suction platform



Product details


Platform Parameters



Platform Specifications

Platform Thickness

Panel Aperture

Panel Pitch

Panel Material

Interface Type

Maximum Without Splicing

25

1

15

Alloy Aluminum

Flange

4000*2100

35.5

1.5

20

Stainless Steel

Threaded Port



42.5

2









53.5











Surface Treatment

Flatness

Panel Thickness

Base Plate Thickness

Suction Port Diameter

Zoning

Hard Oxidation

≤0.2mm

2

2

ɸ50

Customizable

Fluorocarbon Coating





3

ɸ 40



Bright Aluminum







ɸ 30











Customizable





Product Introduction:

[Yinmei Advantage] Minimum Order Quantity: One Piece

Can customize the diameter and spacing of suction holes, specifications and positions of suction ports, range and division of suction areas, size, shape, surface treatment processes, and machining according to customer requirements.



[Yinmei Advantage] Customizable Sizes

Yinmei can produce vacuum suction platforms up to 4000mm*2100mm (without splicing).



[Yinmei Advantage] High Flatness

Yinmei vacuum suction platforms have excellent flatness and deflection, generally controlled within 0.3mm, with a minimum of 0.1mm; deflection under 30kg load is less than 0.1mm.



[Yinmei Advantage] Free Customization

Customizable induction windows, punching, riveting, and other processing. The vacuum suction platform can be fixed or installed on other equipment according to customer needs.



[Yinmei Advantage] Lightweight & High Strength

Yinmei vacuum suction platforms use aluminum honeycomb structure inside, which is lightweight and strong. Made entirely of aluminum alloy materials, with a density of about 25-35 kg per square meter, supporting 30 kg without deformation.



[Yinmei Advantage] Scratch and Wear Resistant

Yinmei vacuum suction platform surfaces have multiple treatment processes, including fluorocarbon PVDF powder coating, anodizing, and hard oxidation. Hard oxidation offers the best scratch and wear resistance, with surface hardness reaching HV500-700.



[Yinmei Advantage] Wide Application of Yinmei Vacuum Suction Platforms

Vacuum suction platforms are used in UV flatbed printing, flexible material cutting, PCB drilling and inspection, vacuum lamination, screen printing, robotic 3D printing, and other industries for high-precision processing or precision milling of metal blocks or thin sheets.









FAQ & Basic Questions:



1. About Customization Services

Q1: What types of customization services does Foshan Yinmei Suction Platform Manufacturing Co., Ltd. offer?
A: We provide comprehensive vacuum suction platform customization services, including size customization, material selection, and suction function configuration.



Q2: How to start the customization process?
A: You can contact our sales through the backend to initially discuss your needs and budget. Then, our professional engineers will communicate with you in detail to confirm requirements and design preliminary plans.



2. Materials and Specifications

Q3: What materials are available for custom suction platforms?
A: Yinmei mainly offers aluminum alloy and stainless steel materials.



Q4: Are there size limitations for custom suction platforms?
A: The advantage of Yinmei's customization service is flexibility. We can produce suction platforms up to 4000   mm*2100   mm in size (larger sizes can be spliced). Specific sizes depend on your actual usage.



3. Design and Function

Q5: Can you provide design draft previews?
A: Certainly, after the design plan is confirmed, we will provide detailed design drafts for your preview.



4. Production and Delivery

Q6: What is the production lead time for custom products?
A: Production time varies depending on product complexity and current factory orders, usually completed within 25-30 days after design confirmation and deposit payment. We maintain close communication to ensure production progress.



Q7: How is product transportation and installation arranged?
A: We provide nationwide transportation services and can arrange professional installation teams for on-site installation and commissioning according to customer needs to ensure smooth product use.



5. After-sales Service

Q8: What after-sales services are provided for custom products?
A: We offer a one-year warranty for all custom products.
