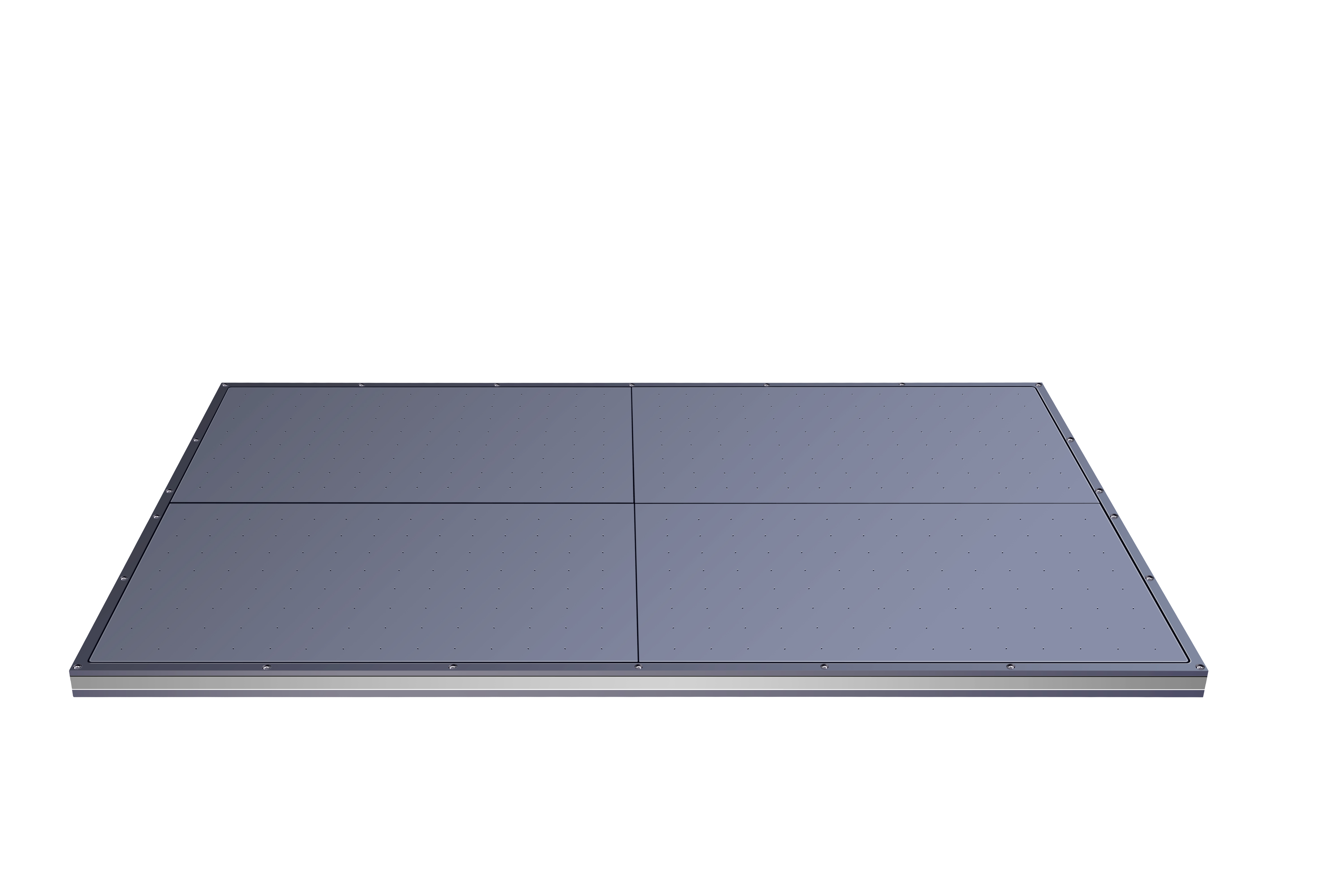

Heating Vacuum Table
Silver Beauty Suction Platform with Heating Vacuum Adsorption
key word:
Printer Series Adsorption Platform
Classification:
Product details
Technical Parameters And Characteristics
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PANEL MATERIAL |
INTERFACE MODE |
|
2500*1300*42.5 |
42.5 |
0.8 |
20 |
Aluminum alloy |
flange |
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ50 |
|
Above Technical Specifications Can Be Customized Basing On The Following Date
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PARTITION |
INTERFACE MODE |
|
Customized |
25 |
0.8 |
10 |
|
flange |
|
|
35.5 |
1.0 |
20 |
Customized |
Screw |
|
|
42.5 |
1.5 |
30 |
|
|
|
MAX:4000*2100 |
53.5 |
Customized |
|
|
|
|
|
75 |
|
|
|
|
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ40 |
|
|
Aluminium primary |
|
|
3.0 |
Φ50 |
|
|
PVDF |
|
|
2.0 |
Customized |
|
Yimiwell has over 10 years of experience in the vacuum table manufacturing field.
Our goal remains consistent: to produce vacuum tables that satisfy customers.
The surface is treated with hard anodization, achieving scratch resistance and wear resistance.
The lightweight sandwich design enables an excellent strength-to-weight ratio.
The honeycomb core provides uniform air flow, thereby minimizing resistance.
Heating Vacuum Table
Ourheated vacuum table mtegrates precise temperature control with rellable suction capabllities. The heat it distributed uniformly throughout the tabletop ofering a versatile solution for various material process where a thermalbond is needed.VACUUM WORKHOLDING SOLUTION
Heated Vacuum Table
Vacuum table with heating function for distributing uniform temperature throughout the tabletop.
Flatness precision:0.10mm
Adjustable heating:Table surface can be heated up to 120℃ for thermal processing needs.
Lightweight and high strength:Constructed with an aluminum-alloy honeycomb core that provides optimized airflow for enhanced suction performance.
Even suction distribution:Ensures stable material hold-down across the entire surface.
Durable surface:Hard anodized finish for enhanced scratch and wear resistance.
Available in various sizes and configurations based on client
requirements.
CharacteristicsOfYIMIWELLVacuumTable:
Yimiwell Vacuum Table are made of aluminum alloy in honeycomb structure，
with extremely high flatness of surface. in addition to the advantages of light weight,
high strength, high rigidity, bending resistance and deflection resistance, this
platform also has the advantages of high flatness, small deflection value, large
adsorption force, scratch resistance and wearresistance.
THE DETAILED ADVANTAGES ARE AS FOLLOWS:
1.LARGE SURFACE WITH HIGH FLATNESS
The maximum length and width dimensions of the Yimiwellvacuumtable panel can
reach 4000×2100mm (splicing is available for sizes exceeding this range). It boasts
excellent flatness and deflection performance:
Flatness: Generally controlled within 0.20mm, with the minimum down to 5μm.
Deflection: Less than 0.10mm under a load of 30 kg.
2.LIGHT WEIGHT AND LARGE BEARING CAPACITY
Yimiwellvacuumtable uses aviation-grade aluminum honeycomb structure with all
aluminum alloy integrated molding. Lightweight design ensures >60kg/m² single
point load-bearing without deformation, combining high strength and stability.
3.GREATSUCTIONINWELL-DISTRIBUTED
Yimiwell vacuumtable ensurestheperformanceoftheplatformarenotaffected
andalsomakesthesuctionforcegreatinwell-distributedatanyposition.
4.ANTI-SCRATCHANDWEAR-RESISTANT
The surface of Yimiwell vacuum table can undergo natural anodizing and hard
anodizingtreatments. Among them, hard anodizing providesthe best scratch
andwearresistance,withamaximumsurfacehardnessofuptoHv500.
5.YIMIWELL VACUUM TABLECAN BECUSTOMIZEDBASING
ONCUSTOMER'SDEMAND.
