Ink-jet Printer Vacuum Table

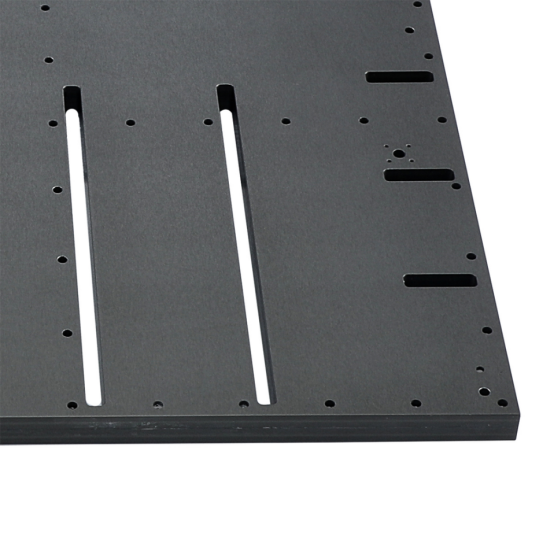

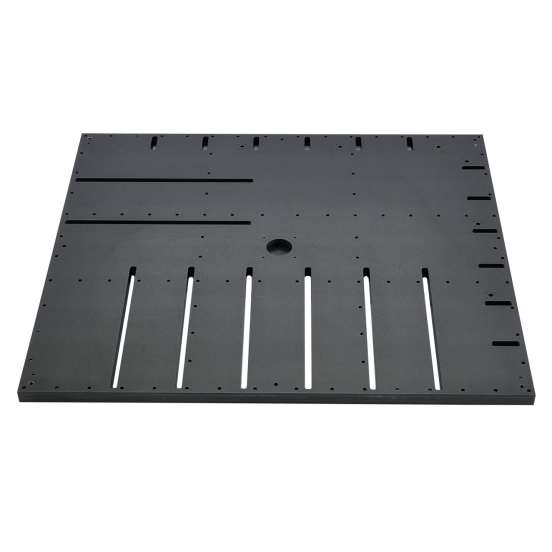

Inkjet printer suction platform (with clamping positioning groove)
key word:
Printer Series Adsorption Platform
Classification:
Product details
Technical Parameters And Characteristics
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PANEL MATERIAL |
INTERFACE MODE |
|
2500*1300*42.5 |
42.5 |
0.8 |
20 |
Aluminum alloy |
flange |
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ50 |
|
Above Technical Specifications Can Be Customized Basing On The Following Date
|
SPEC |
THICKNESS |
PANEL HOLE DIAMETER |
PANEL HOLE SPACING |
PARTITION |
INTERFACE MODE |
|
Customized |
25 |
0.8 |
10 |
|
flange |
|
|
35.5 |
1.0 |
20 |
Customized |
Screw |
|
|
42.5 |
1.5 |
30 |
|
|
|
MAX:4000*2100 |
53.5 |
Customized |
|
|
|
|
|
75 |
|
|
|
|
|
SURFACE FINISHING |
FLATNESS （MM） |
PANEL THICKNESS |
BACK THICKNESS |
PUMPING APERTURE |
|
|
Hard oxidation |
≦0.10 |
2.0 |
2.0 |
Φ40 |
|
|
Aluminium primary |
|
|
3.0 |
Φ50 |
|
|
PVDF |
|
|
2.0 |
Customized |
|
Ink-jet Printer Vacuum Table
1.Flatness≤0.1mm.
2.Customizableauto-clamping/locatingslots
CharacteristicsOf YIMIWELL VacuumTable:

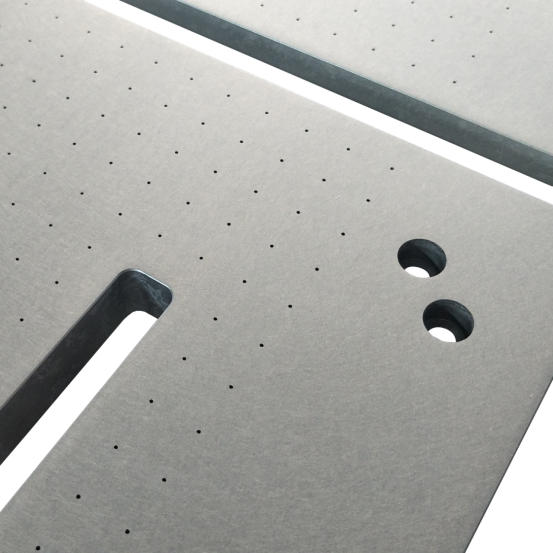

Yimiwell Vacuum Table are made of aluminum alloy in honeycomb structure，
with extremely high flatness of surface. in addition to the advantages of light weight,
high strength, high rigidity, bending resistance and deflection resistance, this
platform also has the advantages of high flatness, small deflection value, large
adsorption force, scratch resistance and wearresistance.
THE DETAILED ADVANTAGES ARE AS FOLLOWS:
1.LARGE SURFACE WITH HIGH FLATNESS
The maximum length and width dimensions of the Yimiwell vacuum table panel can
reach 4000×2100mm (splicing is available for sizes exceeding this range). It boasts
excellent flatness and deflection performance:
Flatness: Generally controlled within 0.20mm, with the minimum down to 5μm.
Deflection: Less than 0.10mm under a load of 30 kg.
2.LIGHT WEIGHT AND LARGE BEARING CAPACITY
Yimiwell vacuum table uses aviation-grade aluminum honeycomb structure with all
aluminum alloy integrated molding. Lightweight design ensures >60kg/m² single
point load-bearing without deformation, combining high strength and stability.
3.GREATSUCTIONINWELL-DISTRIBUTED
Yimiwell vacuumtable ensurestheperformanceoftheplatformarenotaffected
andalsomakesthesuctionforcegreatinwell-distributedatanyposition.
4.ANTI-SCRATCHANDWEAR-RESISTANT
The surface of Yimiwell vacuum table can undergo natural anodizing and hard
anodizingtreatments. Among them, hard anodizing providesthe best scratch
andwearresistance,withamaximumsurfacehardnessofuptoHv500.
5.YIMIWELL VACUUM TABLECAN BECUSTOMIZEDBASING
ONCUSTOMER'SDEMAND.
Application Cases: (Inkjet printers, automation equipment, etc.)
